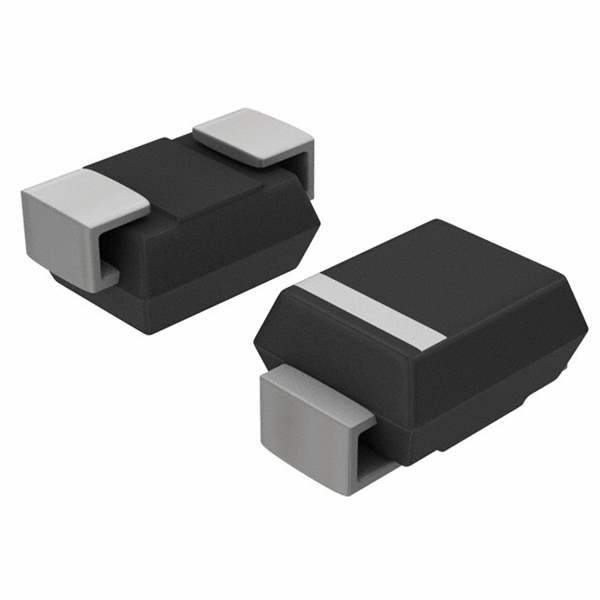

5.0SMDJ30CA/TR13 Yageo
Same model may have multiple batches, images only for reference.

5.0SMDJ30CA/TR13

Part No 5.0SMDJ30CA/TR13
Manufacturer Yageo
Catalog TVS - Diodes
Description 5.0SMDJ, DO-214AB, 30V, 48.4V, R / 48.4V Clamp 103A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Datasheet
5.0SMDJ30CA/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series 5.0SMDJ
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30V
Voltage - Breakdown (Min) 33.3V
Voltage - Clamping (Max) @ Ipp 48.4V
Current - Peak Pulse (10/1000µs) 103A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362105-5.0SMDJ30CA/TR13
Ultra Librarian 3D Model Ultra Librarian 5.0SMDJ30CA/TR13 CAD Model

Description

The YAGEO 1362105-5.0SMDJ30CA/TR13 is a zener diode transient voltage suppressor (TVS) diode.

  • Reverse Standoff Voltage: 30V
  • Breakdown Voltage: 33.3V
  • Clamping Voltage: 48.4V @ 103A (10/1000µs) peak pulse current
  • Channel Type: Bidirectional
  • Power Rating: 5000W (5kW)
  • Package: DO-214AB (SMC)
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 150°C
  • MSL Level: 1 (unlimited)
  • Application: General-Purpose Circuit Protection
