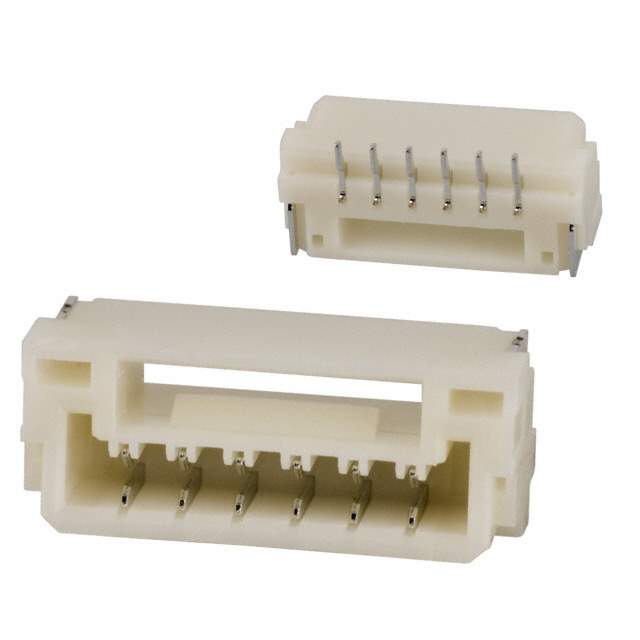

BM06B-GHS-TBT(LF)(SN)(N) Real Image1 BM06B-GHS-TBT(LF)(SN)(N) Real Image2
BM06B-GHS-TBT(LF)(SN)(N) Real Image1 BM06B-GHS-TBT(LF)(SN)(N) Real Image2
Same model may have multiple batches, images only for reference.

BM06B-GHS-TBT(LF)(SN)(N)

Part No BM06B-GHS-TBT(LF)(SN)(N)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 6POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series GH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 7.3mm
Base Product Number BM06B-GH
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 744879-BM06B-GHS-TBT(LF)(SN)(N)
Ultra Librarian 3D Model Ultra Librarian BM06B-GHS-TBT(LF)(SN)(N) CAD Model

Description

The 744879-BM06B-GHS-TBT(LF)(SN)(N) is a male pin header connector from the GH series.

  • Mounting: surface mount
  • Design: shrouded 4-wall design
  • Positions: 6 positions
  • Loading: loaded with all positions
  • Fastening Type: locking ramp
  • Termination: solder
  • Contact Material: phosphor bronze
  • Contact Finish: tin
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Application: board to cable/wire
  • Pitch: 0.049" (1.25mm)
  • Operating Temperature Range: -25°C to 85°C
  • Manufacturer: JST Sales America Inc.
  • Product Status: active
  • Package: 2,500 pieces in tape & reel packaging
