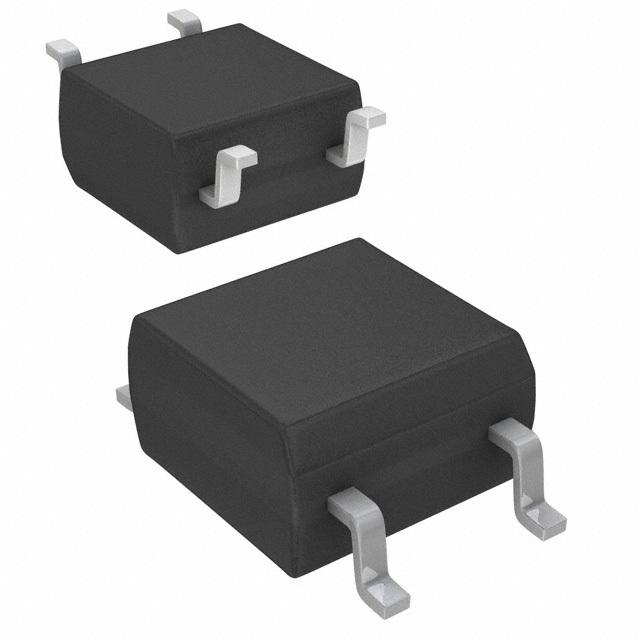

TLP2301(TPL,E Toshiba Semiconductor and Storage TLP2301(TPL,E real image
Same model may have multiple batches, images only for reference.

TLP2301(TPL,E

Part No TLP2301(TPL,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANS 6-SO 4 LEAD
Datasheet
TLP2301(TPL,E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 1mA
Maximum DC Current Transfer Ratio 600% @ 1mA
Input Type DC
Output Type Transistor
Maximum Output Voltage 40V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Case / Package 6-SO, 4 Lead
Win Source Part Number 1056077-TLP2301(TPL,E
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLP2301(TPL,E CAD Model

Description

The Toshiba Semiconductor and Storage TLP2301(TPL,E is a single-channel transistor output optocoupler.

  • Input Type: DC input
  • Maximum Output Voltage: 40V
  • Channel Output Current: 50mA
  • Isolation Voltage: 3750Vrms
  • Minimum DC Current Transfer Ratio: 50% @ 1mA
  • Package: 6-SO, 4 Lead
  • Application: isolator applications
