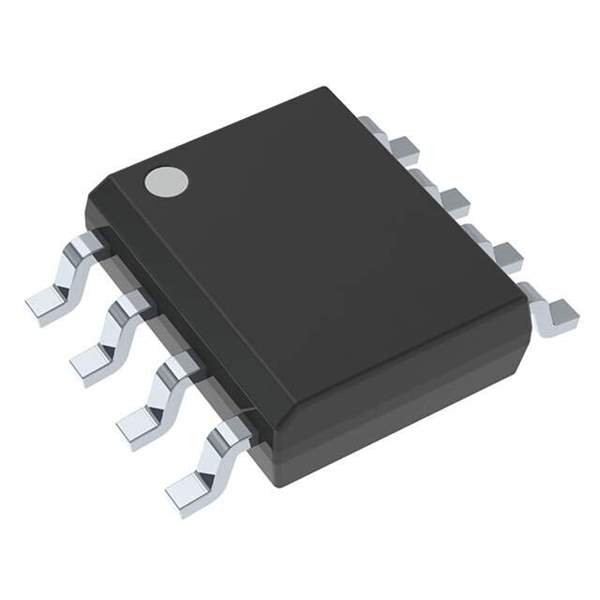

Product Overview: TLC27M2CDR from Texas Instruments

The TLC27M2CDR is a high-quality, precision operational amplifier (op-amp) from Texas Instruments, designed to meet a wide range of applications in the electronics industry. This dual operational amplifier integrates advanced features and is built using the LinCMOS™ process, ensuring low power consumption while maintaining high performance.

Key Features

• Low Power Consumption: The TLC27M2CDR is optimized for low power, making it ideal for battery-powered devices and energy-efficient applications. It offers a typical supply current of 210 µA, which is significantly lower than that of conventional bipolar op-amps.
• High Input Impedance: With an input impedance in the range of teraohms, this op-amp ensures minimal loading on input sources, preserving signal integrity and reducing power loss.
• Wide Supply Range: It operates over a wide supply range of ±1.35V to ±8V (or 2.7V to 16V single supply), providing versatility in various circuit configurations and making it suitable for a broad array of applications.
• Output Drive Capability: The TLC27M2CDR can drive capacitive loads up to 100pF, which is beneficial for handling signals in capacitive environments without significant performance degradation.
• Low Input Offset Voltage: The device features a typical input offset voltage of 900 µV, which helps in achieving accurate signal amplification without significant deviation from the intended voltage levels.
• High Gain Bandwidth Product: With a typical value of 1.1 MHz, this op-amp can handle a wide range of frequencies, making it suitable for audio, filtering, and signal conditioning applications.

Applications

The TLC27M2CDR is a versatile component that finds its place in multiple sectors, including:

• Telecommunications
• Portable and battery-operated electronics
• Analog signal conditioning
• Data acquisition systems
• Active filters and oscillators
• Medical instrumentation

With its precision specifications and low-power profile, the TLC27M2CDR from Texas Instruments is a reliable choice for engineers and designers looking to enhance the performance and efficiency of their electronic systems.
