The TL494CNE4 device by Texas Instruments is a versatile pulse-width-modulation (PWM) control circuit designed to offer precise control of switched-mode power supplies, DC-DC converters, and a variety of other power control applications. This integrated circuit (IC) is engineered to provide the flexibility and performance required for today's sophisticated electronic systems.

Key Features

• Flexible PWM Operations: The TL494CNE4 incorporates two error amplifiers, an on-chip adjustable oscillator, a dead-time control (DTC) comparator, a pulse-steering control flip-flop, a 5 V precision reference, and output-control circuits.
• Variable Dead Time: It provides the user with the means to directly control the dead time between the turn-off of one driver and the turn-on of the opposite driver, which enhances the efficiency of the power conversion process.
• Wide Frequency Range: The oscillator frequency range can be adjusted over a 100:1 range by external components, offering a high level of versatility for different application requirements.
• Dual Error Amplifiers: These amplifiers can be used for tracking and control, providing the necessary feedback mechanisms for precise voltage or current regulation.
• Under-Voltage Lockout: The built-in under-voltage lockout feature ensures that the outputs are in the off state when the supply voltage is too low, protecting the device and the system it controls.

Applications

The TL494CNE4 is an ideal component for a range of applications due to its high level of integration and performance. It is commonly used in:

• Switched-mode power supplies
• DC-to-DC converters
• Desktop and server power supplies
• Power inverters
• Battery management systems

Technical Specifications

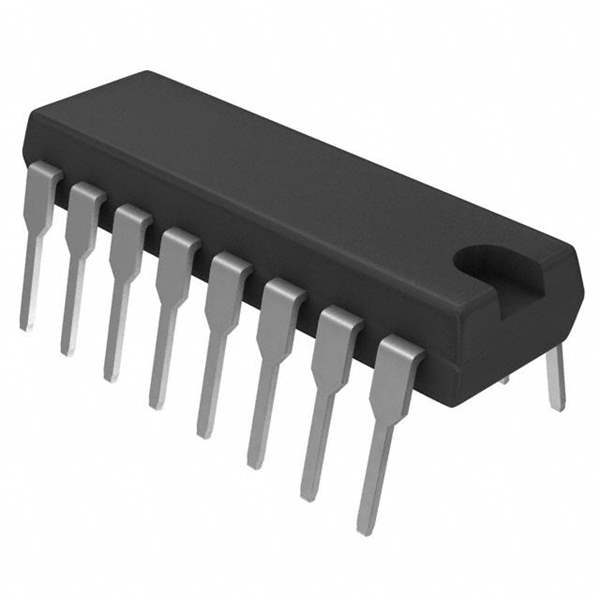

The device operates over a wide voltage range from 7 V to 40 V and can handle frequencies up to 300 kHz. The TL494CNE4 is available in a 16-pin PDIP (Plastic Dual-In-Line Package), which is suitable for through-hole mounting, making it easy to integrate into a variety of circuit boards.

With the TL494CNE4, Texas Instruments provides a reliable and efficient solution for advanced power control. Its robust design and comprehensive features make it a go-to choice for engineers and designers looking to optimize their power management systems.
