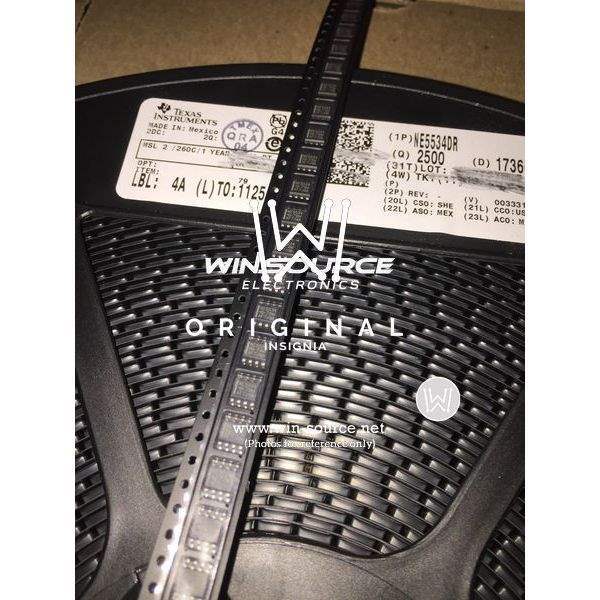

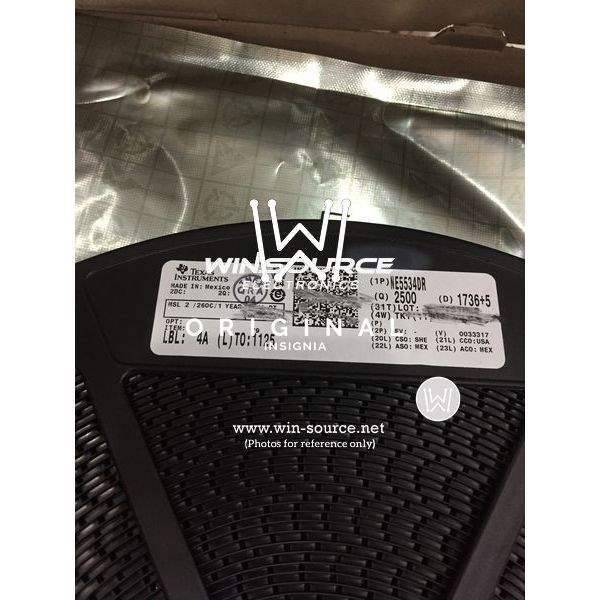

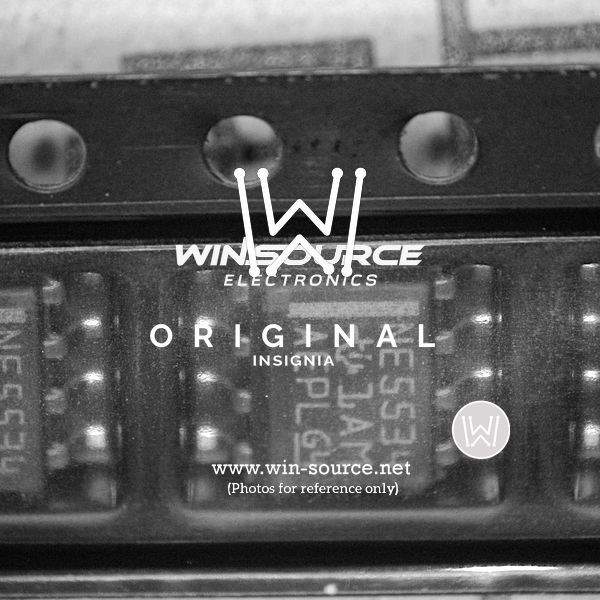

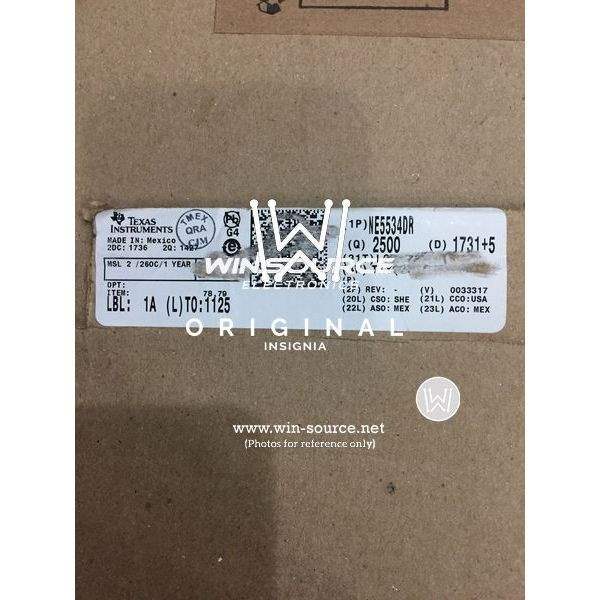

NE5534DR Texas Instruments NE5534DR Real Image NE5534DR real image4038 NE5534DR label picture 2 NE5534DR label picture 3 NE5534DR real image
NE5534DR Texas Instruments NE5534DR Real Image NE5534DR real image4038 NE5534DR label picture 2 NE5534DR label picture 3 NE5534DR real image
Same model may have multiple batches, images only for reference.

NE5534DR

Part No NE5534DR
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description Op Amp Single Low Noise Amplifier ±15V 8-Pin SOIC T/R / IC OPAMP GP 10MHZ 8SOIC
Datasheet
NE5534DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Status Active
Packaging Reel - TR
Categories Integrated Circuits
Manufacturer Texas Instruments
Number of Circuits 1
Operating Supply Current 4mA
Channel Output Current 38mA
Supply Voltage - Operating 10 V to 30 V, ±5 V to 15 V
Temperature Range - Operating 0°C to 70°C
Case / Package 8-SOIC
Amplifier Type General Purpose
Gain Bandwidth Product (GBP) 10MHz
Introduction Date August 01, 2003
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Family Name NE5534
Slew Rate 13 V/μs
Current - Input Bias 500nA
Voltage - Input Offset 500μV
Win Source Part Number 025197-NE5534DR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NE5534DR CAD Model

Description

The NE5534DR is a high-performance, low-noise operational amplifier produced by Texas Instruments, a renowned global semiconductor company that designs and manufactures analog and digital technology products.

  • Loads: Capable of driving 600-ohm loads
  • Operational amplifier features: high slew rate, low distortion, low noise, and high gain
  • Bandwidths: High small-signal and power bandwidths
  • Power supply voltages: from ±3V to ±22V
  • Package: small 8-pin SOIC package
  • Frequency compensation: internal frequency compensation
  • RoHS compliant: adheres to the European Union's directive on the restriction of hazardous substances
