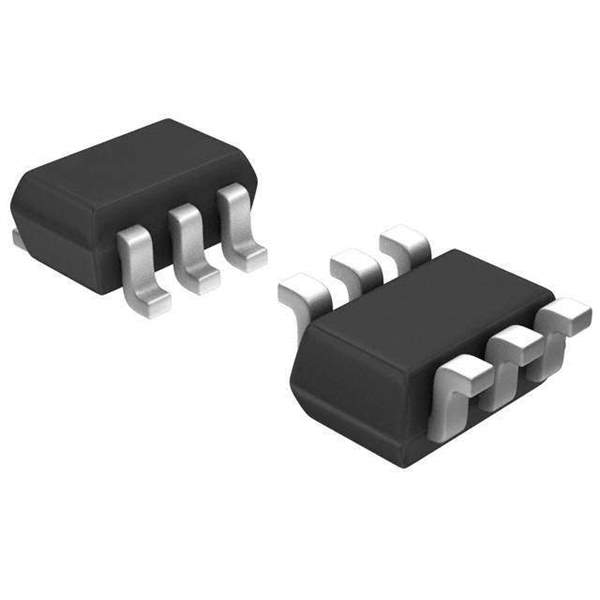

LMH6601MG/NOPB Real Image
Same model may have multiple batches, images only for reference.

LMH6601MG/NOPB

Part No LMH6601MG/NOPB
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP VFB 155MHZ RRO SC70-6
Datasheet
LMH6601MG/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type Voltage Feedback
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 275 V/μs
Gain Bandwidth Product (GBP) 155MHz
-3db Bandwidth 250MHz
Current - Input Bias 5pA
Voltage - Input Offset 1mV
Operating Supply Current 9.6mA
Channel Output Current 180mA
Supply Voltage - Operating 2.4 V to 5.5 V, ±1.2 V to 2.75 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SC-70-6
Win Source Part Number 136784-LMH6601MG/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LMH6601MG/NOPB CAD Model

Description

The is a high-performance, wideband, voltage feedback operational amplifier from Texas Instruments.

  • Bandwidth: 1.5 GHz
  • Slew Rate: 1300V/µs
  • Noise: Low input voltage noise density of 1.6 nV/√Hz at 10kHz and low input current noise of 10 pA/√Hz
  • Power Efficiency: Operates on a single 5V to 12V supply or dual ±5V to ±6V supplies, with a quiescent current of 6.1mA and thermal shutdown protection
  • Package: 8-pin SOIC, compact and easy to integrate
  • Compliance: RoHS compliant and lead-free

The is a highly efficient and versatile operational amplifier that ensures superior performance across a wide range of applications, from video and imaging devices to telecommunication systems and medical instrumentation.
