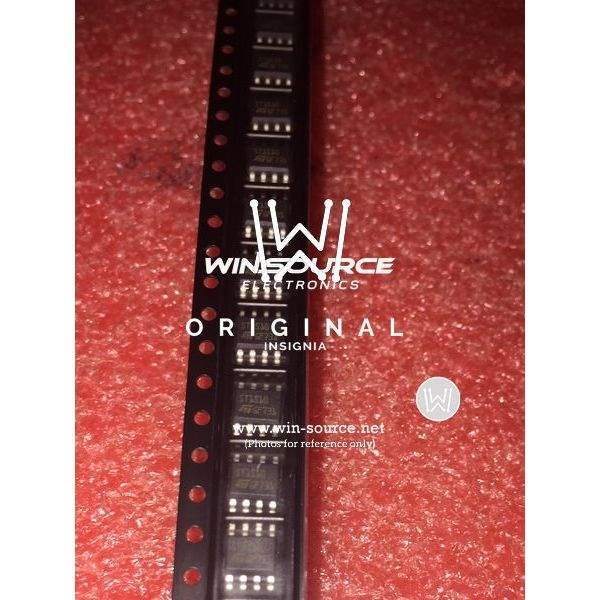

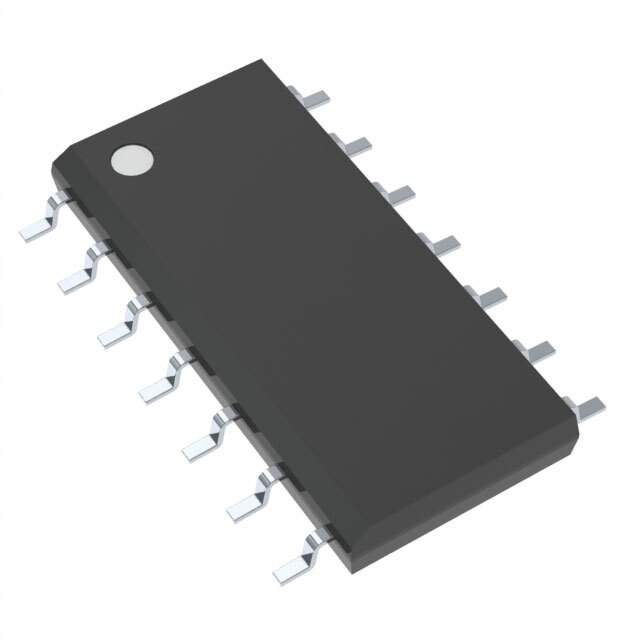

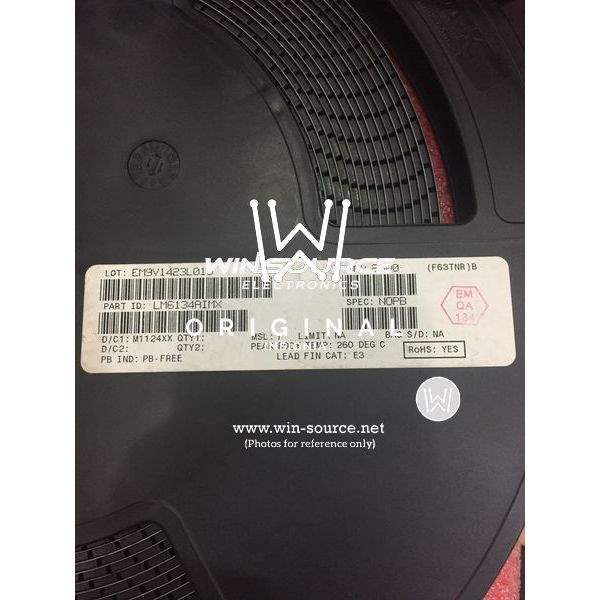

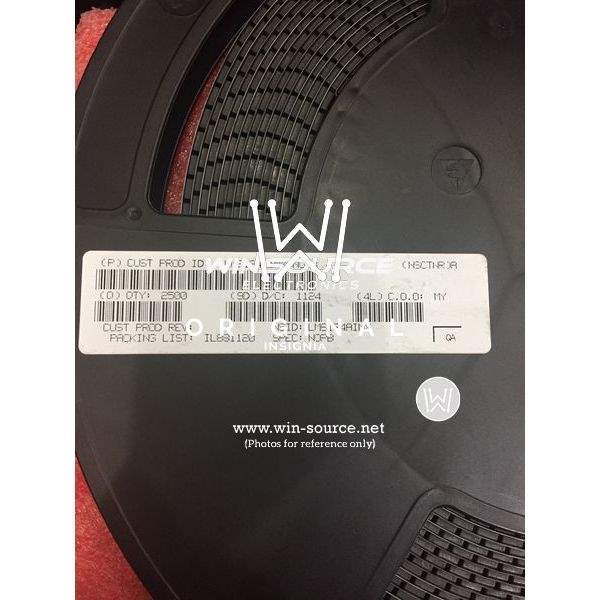

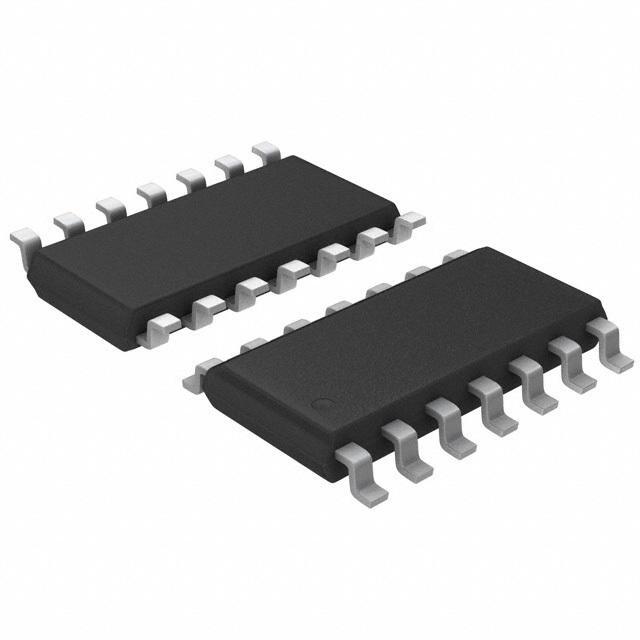

LM6134AIMX/NOPB Texas Instruments LM6134AIMX/NOPB Real Image LM6134AIMX/NOPB Real Image LM6134AIMX/NOPB real image 2 LM6134AIMX/NOPB label picture LM6134AIMX/NOPB label picture 2
LM6134AIMX/NOPB Texas Instruments LM6134AIMX/NOPB Real Image LM6134AIMX/NOPB Real Image LM6134AIMX/NOPB real image 2 LM6134AIMX/NOPB label picture LM6134AIMX/NOPB label picture 2
Same model may have multiple batches, images only for reference.

LM6134AIMX/NOPB

Part No LM6134AIMX/NOPB
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 11MHZ RRO 14SOIC / Op Amp Quad Low Power Amplifier R-R I/O 24V 14-Pin SOIC T/R
Datasheet
LM6134AIMX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type General Purpose
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 14 V/μs
Gain Bandwidth Product (GBP) 11MHz
Current - Input Bias 125nA
Voltage - Input Offset 1.7mV
Operating Supply Current 390μA
Channel Output Current 3.5mA
Supply Voltage - Operating 1.8 V to 24 V, ±0.9 V to 12 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-SOIC
Win Source Part Number 112574-LM6134AIMX/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LM6134
Introduction Date April 01, 2000
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LM6134AIMX/NOPB CAD Model

Description

The is a high-performance, low-power, quad operational amplifier from Texas Instruments. This product is part of Texas Instruments' extensive range of semiconductors, renowned for their superior quality, reliability, and innovative technology.

  • Supply Voltage: Single supply 2.7V to 12V, or dual supply ±1.35V to ±6V
  • Slew Rate: 10V/µs
  • Bandwidth: 10MHz
  • Input Bias Current: 1pA
  • Input Offset Voltage: 2mV
  • Features: Rail-to-rail output swing, ESD protection, and latch-up immunity
  • Package: Compact surface-mount package
