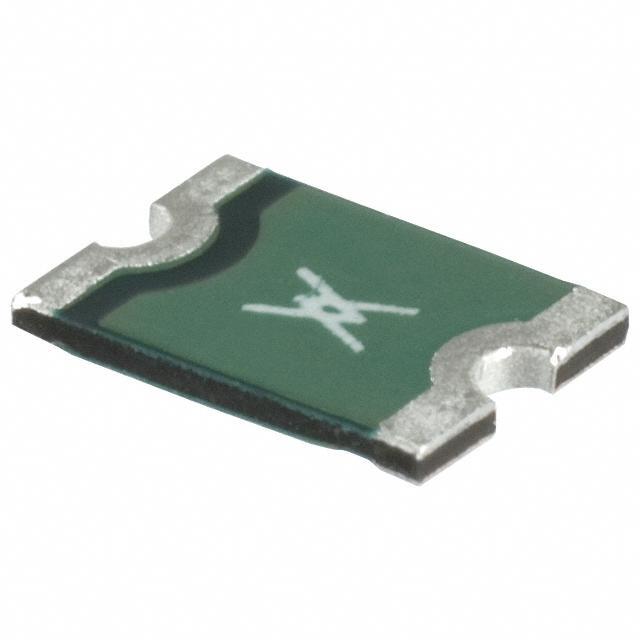

MINISMDC014F-2 TE Connectivity MINISMDC014F-2 real image

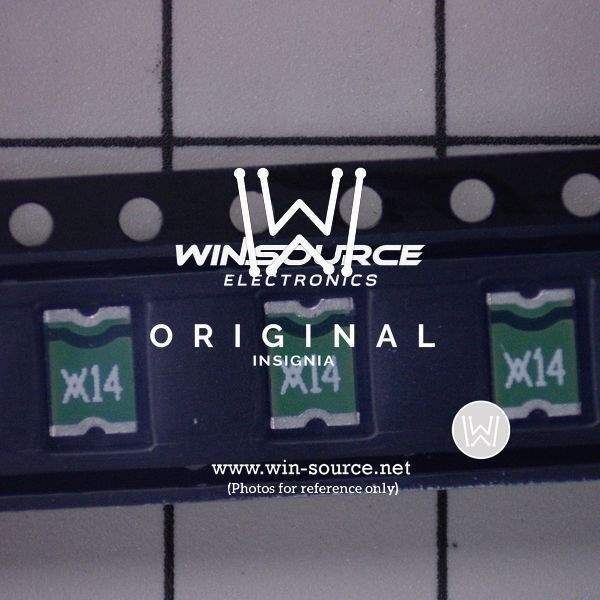

MINISMDC014F-2 TE Connectivity MINISMDC014F-2 real image
Same model may have multiple batches, images only for reference.

MINISMDC014F-2

Part No MINISMDC014F-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description POLYSWITCH .14A RESET FUSE SMD / PTC Resettable Fuse 0.14A(hold) 0.28A(trip) 60VDC 10A 0.75W 0.008s 1.5Ohm SMD Solder Pad 4.73 X 3.41 X 0.89mm T/R Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch
Packaging Reel
Voltage - Max 60V
Current - Max 10A
Current - Hold (Ih) (Max) 140mA
Current - Trip (It) 280mA
R Min/Max 1.500 ~ 6.000 Ohm
Time to Trip 0.008s
Package 1812 (4532 Metric) Concave
Catalog PolySwitch Surface Mount
Win Source Part Number 084237-MINISMDC014F-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Safety, Consumer Electronics, Portable Devices, Multimedia, Automotive, Industrial
Family Name MINISMDC
Introduction Date August 10, 2016
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian MINISMDC014F-2 CAD Model

Description

The TE Connectivity 084237-MINISMDC014F-2 is a high popularity PTC resettable fuse from the PolySwitch series.

  • Voltage Range: Up to 60V
  • Current Range: Up to 10A
  • Current-hold (Ih): Maximum of 140mA
  • Current-trip (It): Maximum of 280mA
  • R Min/Max: 1.500 ~ 6.000 Ohm
  • Time to trip: 0.008s
  • Applications: Safety, consumer electronics, portable devices, multimedia, automotive, and industrial applications
