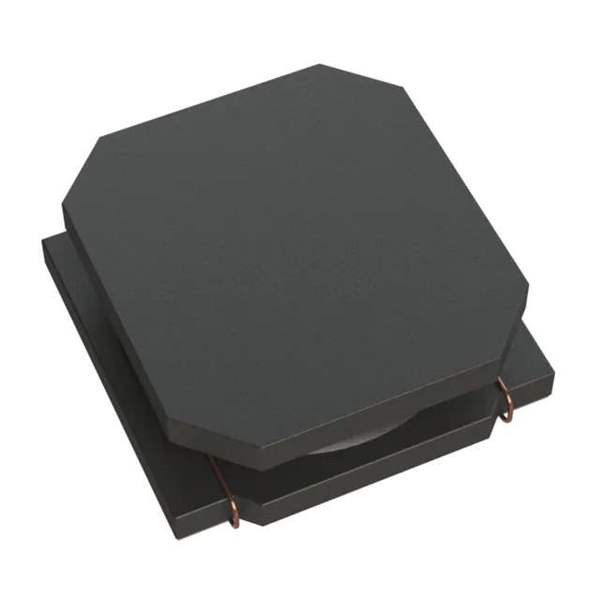

SWPA5040S101MT Real Image
Same model may have multiple batches, images only for reference.

SWPA5040S101MT

Part No SWPA5040S101MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 100UH 700MA 728MOHM SM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sunlord
Series SWPA
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 750mA
Shielding Shielded
DC Resistance (DCR) 728mOhm Max
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 1,500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 898623-SWPA5040S101MT
Ultra Librarian 3D Model Ultra Librarian SWPA5040S101MT CAD Model

Description

The SWPA5040S101MT is a drum core, wirewound inductor from Sunlord.

  • Type: Shielded Inductor
  • Size: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Inductance: 100 µH
  • Maximum Seated Height: 0.157" (4.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 728mOhm Max
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 700 mA
  • Saturation Current: 750mA
  • Standard Package: 1,500 pcs
  • Material: Ferrite
  • Self-Resonant Frequency: 5MHz
  • Moisture Sensitivity Level (MSL): 1
  • ECCN: EAR99
