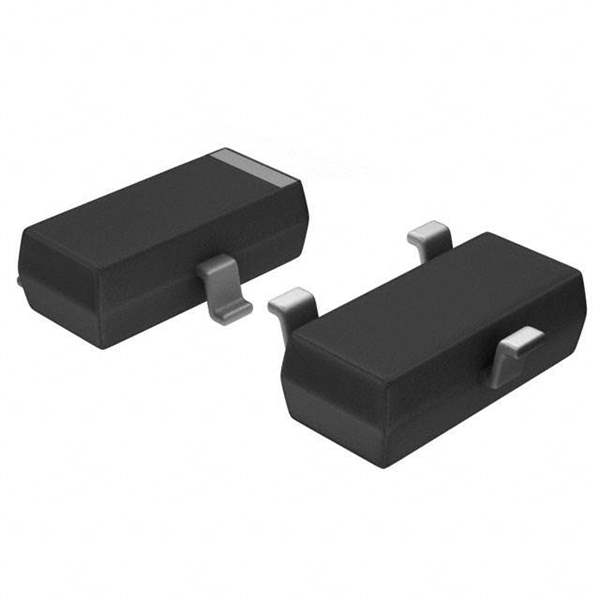

SMP1321-005LF Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

SMP1321-005LF

Part No SMP1321-005LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description DIODE PIN 100V 250MW SOT-23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Diode Type PIN - 1 Pair Series Connection
Voltage - Peak Reverse (Max) 100V
Capacitance @ Vr, F 0.25pF @ 30V, 1MHz
Resistance @ If, F 2 Ohm @ 10mA, 100MHz
Power Dissipation (Max) 250mW
Temperature Range - Operating -65°C to 150°C (TA)
Case / Package SOT-23-3
Win Source Part Number 029436-SMP1321-005LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMP1321-005LF CAD Model

Description

The Skyworks Solutions Inc. SMP1321-005LF is a PIN - 1 Pair Series Connection diode with a capacitance of 0.25pF @ 30V, 1MHz and a voltage peak reverse of 100V.

  • Resistance: 2 Ohm @ 10mA, 100MHz
  • Power Dissipation: 250mW
  • Application: Discrete Semiconductor Products
  • Temperature Range: -65°C to 150°C (TA)
  • Mounting: SOT-23-3 technology
