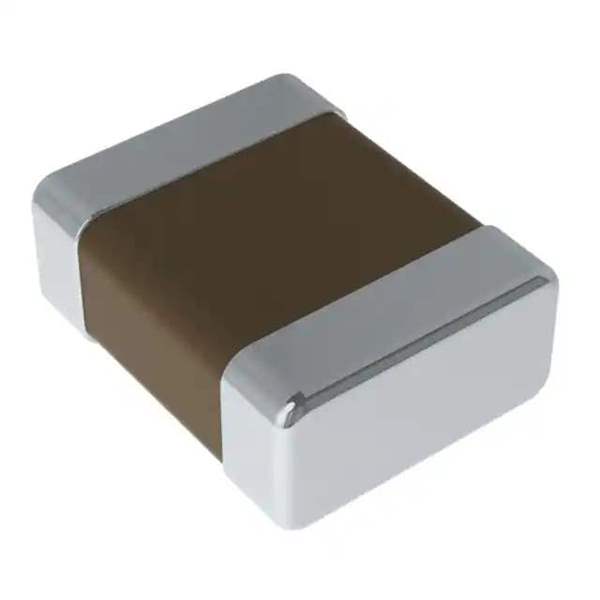

CIGT252010EH1R0MNE Real Image
Same model may have multiple batches, images only for reference.

CIGT252010EH1R0MNE

Part No CIGT252010EH1R0MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 1UH 4.1A 30 MOHM SMD
Datasheet
CIGT252010EH1R0MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Samsung
Series CIGT
Package Tape & Reel
Product Status Active
Type Thin Film
Material - Core Metal Composite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 5A
Shielding Unshielded
DC Resistance (DCR) 30mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 843211-CIGT252010EH1R0MNE
Ultra Librarian 3D Model Ultra Librarian CIGT252010EH1R0MNE CAD Model

Description

The Samsung CIGT252010EH1R0MNE is a fixed inductor with an inductance of 1 µH.

  • Inductance: 1 µH
  • Series: CIGT
  • Type: Thin Film
  • Shielding: Unshielded
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Seated Height: 0.039" (1.00mm)
  • Packaging: Tape & Reel
  • Standard Package: 3,000 pcs
  • Tolerance: ±20%
  • DC Resistance (DCR): 30mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Samsung
  • Market Status: Active
