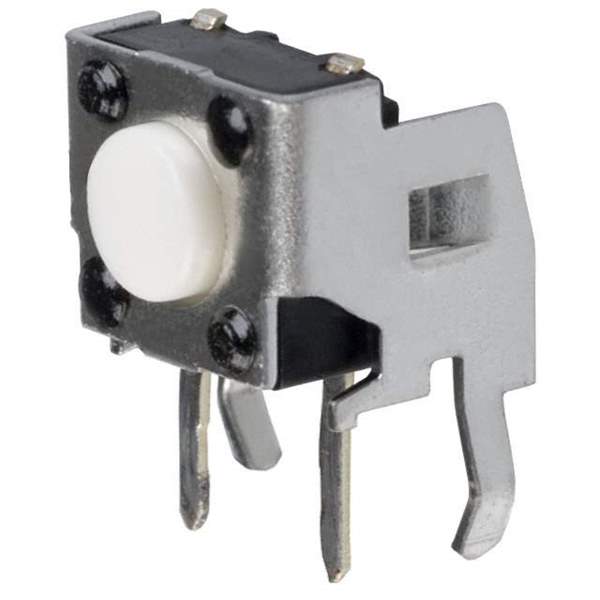

EVQ-PF003M Real Image
Same model may have multiple batches, images only for reference.

EVQ-PF003M

Part No EVQ-PF003M
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet
EVQ-PF003M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1121768-EVQ-PF003M
Standard Package 500
ECCN EAR99
MSL Level 1 (Unlimited)
Temperature Range - Operating -20°C ~ 70°C
Outline 7.50mm x 7.10mm
Termination Style PC Pin
Actuator Orientation Side Actuated
Mounting Type Through Hole, Right Angle
Actuator Type Standard
Product Status Obsolete
Package Bulk
Mfr Panasonic Electronic Components
Category Switches>Tactile Switches
Series EVQPF
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Length, Right Angle 3.15mm
Operating Force 100gf
Base Product Number EVQ-PF
HTSUS 8536.50.9031
Other Names Q3400997,EVQPF003M,P10877S,P10877S-NDR
Circuit SPST-NO
Switch Function Off-Mom
Illumination Non-Illuminated
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Ultra Librarian 3D Model Ultra Librarian EVQ-PF003M CAD Model

Description

The Panasonic EVQ-PF003M is a tactile switch that is part of the EVQPF series.

  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Standard Package: 500
  • Mounting Type: Through-Hole, Right Angle
  • Mechanical Life: 100,000 cycles
  • Operating Force: 100gf
  • Contact Rating: 0.02A @ 15VDC
  • Switch Travel: 0.25mm
  • Actuator Type: Standard
  • Illumination: Non-Illuminated
  • Temperature Range: -20°C to 70°C
  • Package: Bulk
  • Product Status: Obsolete
