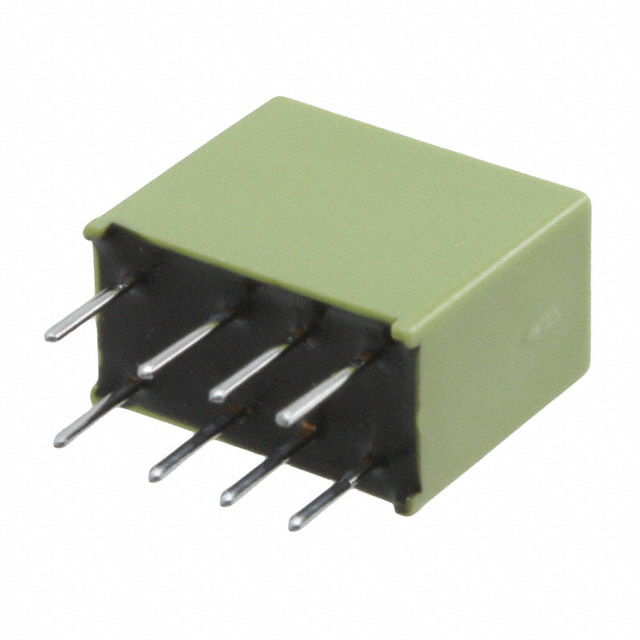

AGN20012 Panasonic AGN20012 Real Image AGN20012 real image AGN20012 Real Image
AGN20012 Panasonic AGN20012 Real Image AGN20012 real image AGN20012 Real Image
Same model may have multiple batches, images only for reference.

AGN20012

Part No AGN20012
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description Signal Relay 12VDC 1A DPDT(10.6x5.7x9)mm THT / RELAY TELECOM DPDT 1A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic
Standard Package 50
Category Relays
Family Signal Relays Up to 2 Amps
Series AGN
Packaging Tube
Relay Type Telecom
Coil Type Non Latching
Coil Current 11.7mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC 110VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 4ms
Release Time 4ms
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Palladium (AgPd) Gold (Au)
Coil Power 140 mW
Coil Resistance 1.03 kOhms
Operating Temperature Range -40°C ~ 85°C
Catalog AGN Series
Win Source Part Number 083557-AGN20012
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Security, Consumer Electronics, Test & Measurement, Audio
Family Name AGN20012
Introduction Date December 01, 2003
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AGN20012 CAD Model

Description

AGN20012 Overview
