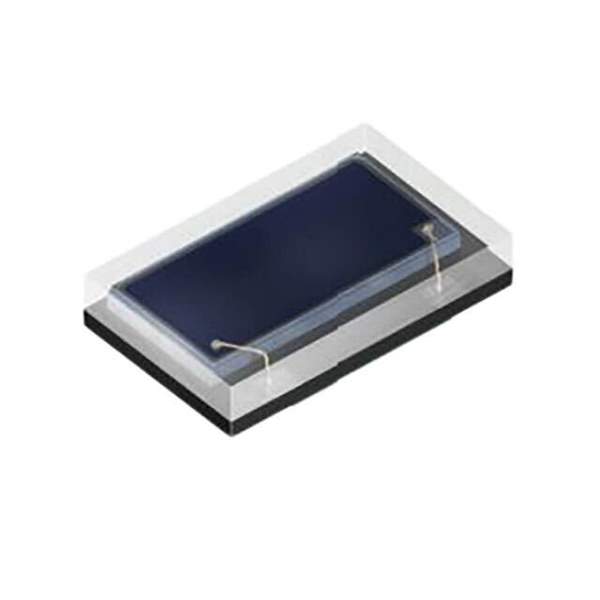

SFH 2703 Real Image
Same model may have multiple batches, images only for reference.

SFH 2703

Part No SFH 2703
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description CHIPLED / Photodiode 940nm 3.6µs, 3.5µs 130° 2-SMD, No Lead
Datasheet
SFH 2703 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr ams-OSRAM USA Inc.
Series CHIPLED
Package Tape & Reel
Wavelength 940nm
Spectral Range 400nm ~ 1100nm
Diode Type PIN
Response Time 3.6µs, 3.5µs
Voltage - DC Reverse (Vr) (Max) 16 V
Current - Dark (Typ) 100pA
Active Area 3.27mm²
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 475-SFH2703TR,475-SFH2703DKR,475-SFH2703CT
Standard Package 3,000
Win Source Part Number 1115928-SFH 2703
Ultra Librarian 3D Model Ultra Librarian SFH 2703 CAD Model

Description

The SFH 2703 is a PIN diode type optical sensor that comes with a viewing angle of 130 degrees.

  • Type: PIN Diode
  • Viewing Angle: 130 degrees
  • Wavelength: 940nm
  • Spectral Range: 400nm to 1100nm
  • Response Time: 3.6 microseconds and 3.5 microseconds
  • Maximum DC Reverse Voltage: 16V
  • Current-Dark: 100pA
  • Package: 2-SMD, no lead
  • Active Area: 3.27mm²
  • Operating Temperature Range: -40°C to 85°C
  • Series: CHIPLED
  • Packaging: Tape and reel
  • Standard Package: 3,000 units
  • Cross-Reference: SFH2703
