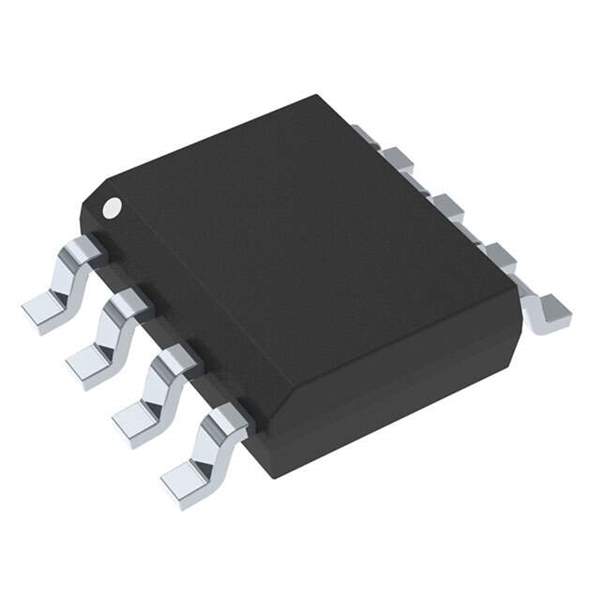

ON Semiconductor NCP4306AADZZZADR2G Product Overview

The NCP4306AADZZZADR2G is a high-performance synchronous rectification controller designed by ON Semiconductor, a leading manufacturer in the semiconductor industry. This product is specifically engineered to enhance the efficiency of secondary side rectification in switch mode power supplies (SMPS) and is particularly suitable for applications in server and desktop power supplies, adapters, and flat-panel display power supplies.

Key Features

• High Efficiency: The NCP4306AADZZZADR2G is optimized to reduce power loss by replacing Schottky diodes with MOSFETs in the output rectification stage, thus improving overall efficiency, especially in low voltage, high current scenarios.
• Adaptive Gate Drive: It features an adaptive gate drive for optimal MOSFET switching, which helps in minimizing the body diode conduction time without the need for external components.
• Voltage Mode and Current Mode Control: This device is compatible with both voltage mode and current mode control power supply topologies, offering flexibility in design.
• Light Load Operation: It supports light load operation, which is essential for maintaining efficiency under various load conditions.
• Wide V_CC Operating Range: The NCP4306AADZZZADR2G operates over a broad V_CC range, accommodating different voltages and enhancing the product's versatility across multiple applications.

Applications

• Server Power Supplies
• Desktop Power Supplies
• Adapters for Laptops and Mobile Devices
• Flat-Panel Display Power Supplies

The NCP4306AADZZZADR2G integrates several protective features, including under-voltage lockout (UVLO) and over-voltage protection (OVP), which safeguard the device under abnormal operating conditions. Additionally, its compact package design allows for easy integration into various circuit designs without occupying significant board space.

ON Semiconductor's commitment to quality and performance is evident in the NCP4306AADZZZADR2G, making it an ideal choice for designers looking to enhance power efficiency and reliability in their SMPS designs. With its robust feature set and flexible application range, this synchronous rectification controller is poised to deliver superior performance in a wide array of power supply systems.
