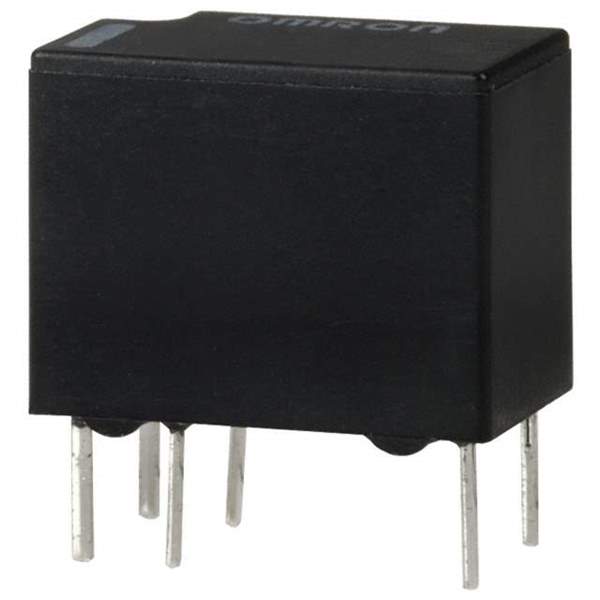

G5V-1-DC5 Real Image
Same model may have multiple batches, images only for reference.

G5V-1-DC5

Part No G5V-1-DC5
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 1A 5VDC / General Purpose Relay SPDT (1 Form C) Through Hole
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5V-1
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 60VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 4 VDC
Must Release Voltage 0.5 VDC
Operate Time 5 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 167 Ohms
Base Product Number G5V
Other Names G5V 8040C,Z773,G5V1DC5,G5V15DC
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1237282-G5V-1-DC5
Ultra Librarian 3D Model Ultra Librarian G5V-1-DC5 CAD Model

Description

The Omron G5V-1-DC5 is a general-purpose SPDT (1 Form C) relay with a contact rating of 1A and a switching voltage of 125VAC, 60VDC - Max.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 1A
  • Switching Voltage: 125VAC, 60VDC - Max
  • Coil Voltage: 5VDC
  • Coil Resistance: 167 Ohms
  • Coil Current: 30 mA
  • Temperature Range: -40°C to 70°C
  • Seal Rating: Sealed - Fully
  • Must Operate Voltage: 4VDC
  • Must Release Voltage: 0.5VDC
  • Mounting: Through Hole
  • Package: Tube
