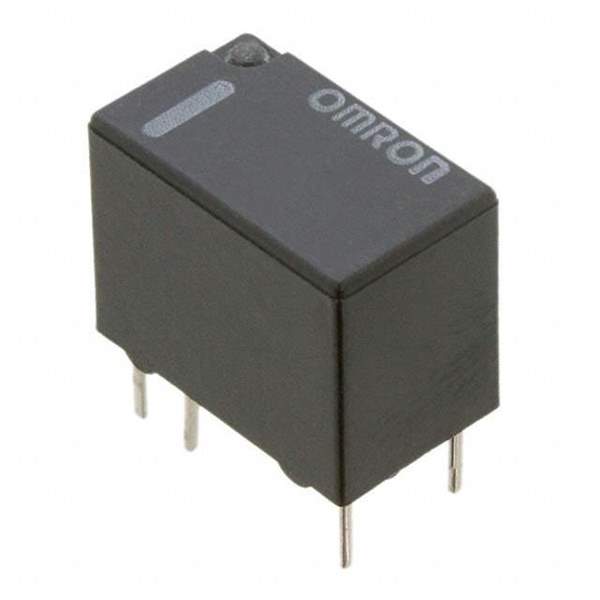

G5V-1-DC12 Real Image
Same model may have multiple batches, images only for reference.

G5V-1-DC12

Part No G5V-1-DC12
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 1A 12V
Datasheet
G5V-1-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 12.5mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 60VDC - Max
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 5ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 150 mW
Coil Resistance 960 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 001354-G5V-1-DC12
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Audio, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian G5V-1-DC12 CAD Model

Description

The Omron Electronics Inc-EMC Div 001354-G5V-1-DC12 is a sealed, general-purpose, SPDT (1 Form C) relay that operates on 12VDC coil voltage.

  • Coil Resistance: 960 Ohms
  • Coil Current: 12.5mA
  • Switching Voltage: 125VAC and 60VDC (max)
  • Contact Rating: 1A
  • Turn-On Voltage (max): 9.6 VDC
  • Turn-Off Voltage (min): 1.2 VDC
  • Operate Time & Release Time: 5ms each
  • Mounting: Through Hole
  • Termination Style: PC Pin
  • Operating Temperature: -40°C to 70°C

This relay is used in audio, communications, and networking applications.
