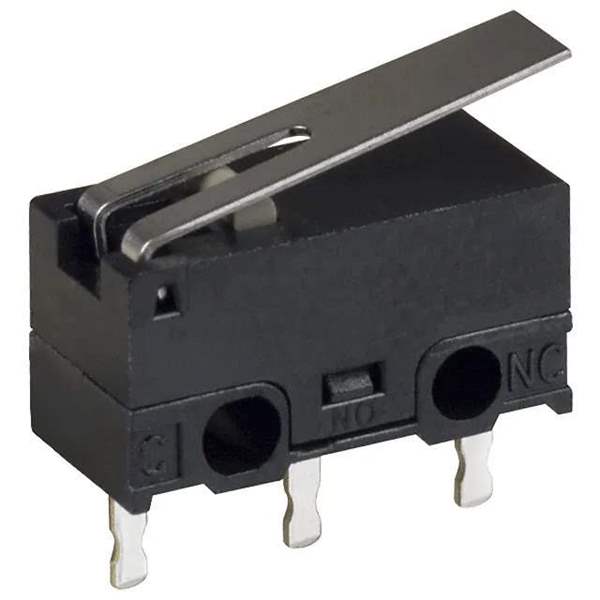

D2F-01FL Real Image
Same model may have multiple batches, images only for reference.

D2F-01FL

Part No D2F-01FL
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 25gf
Release Force 2.039gf
Operating Position 0.268" (6.8mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 846208-D2F-01FL
Ultra Librarian 3D Model Ultra Librarian D2F-01FL CAD Model

Description

The D2F-01FL limit switch is a SPDT (single-pole double-throw) switch designed for various applications from Omron.

  • Switch Type: SPDT
  • Termination Style: PC Pin
  • Ingress Protection: IP40
  • Voltage Rating: 30VDC
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Operating Force: 25gf
  • Release Force: 2.039gf
  • Pretravel: 0.020 inches (0.5mm)
  • Differential Travel: 0.020 inches (0.55mm)
  • Overtravel: 0.022 inches (0.55mm)
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Package: Bulk
  • Standard Package: 1,000 pcs
