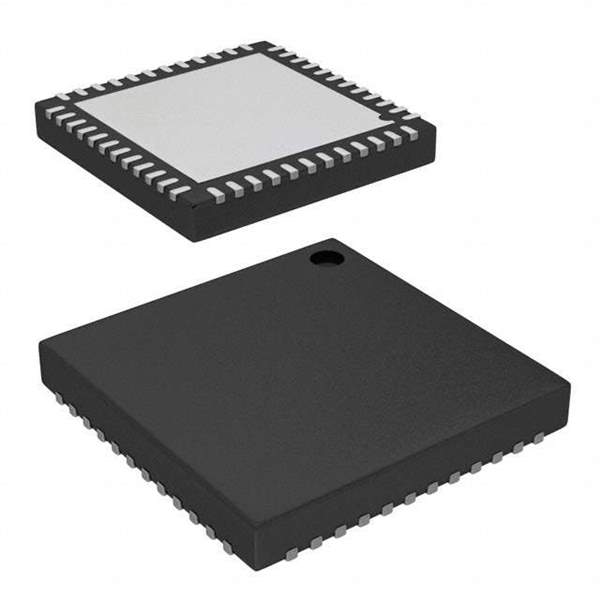

NRF24LE1-F16Q48-T Real Image
Same model may have multiple batches, images only for reference.

NRF24LE1-F16Q48-T

Part No NRF24LE1-F16Q48-T
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU ISM>1GHZ 48-VFQFN
Datasheet
NRF24LE1-F16Q48-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Nordic Semiconductor ASA
Packaging Tray
Part Status Active
Type TxRx + MCU
RF Family/Standard General ISM > 1GHZ
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 0dBm
Sensitivity -94dBm
Memory Size 16kB Flash, 1kB SRAM
Serial Interfaces I2C, JTAG, SPI, UART
GPIO 31
Voltage - Supply 1.9 V ~ 3.6 V
Current - Receiving 12.4mA ~ 13.3mA
Current - Transmitting 6.8mA ~ 11.1mA
Temperature Range - Operating -40°C ~ 85°C
Case 48-VFQFN Exposed Pad
Win Source Part Number NRF24LE1-F16Q48-T-259415
Popularity Medium
Supply and Demand Status Limited
Quantity per package 260
Ultra Librarian 3D Model Ultra Librarian NRF24LE1-F16Q48-T CAD Model

Description

The Nordic Semiconductor ASA NRF24LE1-F16Q48-T-259415 is a medium-popularity electronic component with a tray packaging type and a 48-VFQFN exposed pad package.

  • Type: TxRx + MCU
  • Operating Temperature: -40°C ~ 85°C
  • Frequency: 2.4GHz
  • Memory Size: 16kB Flash, 1kB SRAM
  • Power Output: 0dBm
  • Sensitivity: -94dBm
  • Current for receiving: 12.4mA ~ 13.3mA
  • Current for transmitting: 6.8mA ~ 11.1mA
  • Maximum Data Rate: 2Mbps
