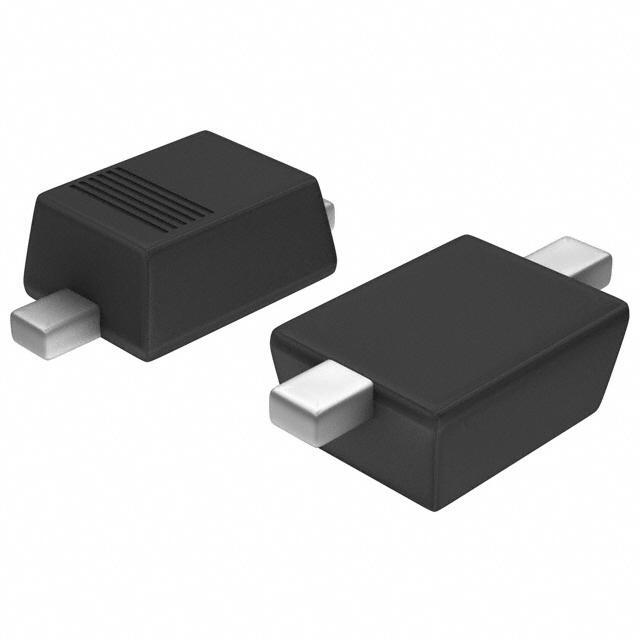

PMEG6002EJ,115 Nexperia USA Inc. PMEG6002EJ,115 real image PMEG6002EJ,115 label picture
PMEG6002EJ,115 Nexperia USA Inc. PMEG6002EJ,115 real image PMEG6002EJ,115 label picture
Same model may have multiple batches, images only for reference.

PMEG6002EJ,115

Part No PMEG6002EJ,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 200MA SOD323F
Datasheet
PMEG6002EJ,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 600mV @ 200mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 100μA @ 60V
Capacitance @ Vr, F 14pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-323F
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089638-PMEG6002EJ,115
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PMEG6002EJ,115 CAD Model

Description

The Nexperia USA Inc. 423283 is an active electronic component that is designed to meet the needs of various electronic applications.

  • Maximum DC Reverse Voltage: 60V
  • Average Rectified Current: 200mA
  • Forward Voltage: 600mV @ 200mA
  • Reverse Recovery Time: 5ns
  • Current Reverse Leakage @ Vr: 100μA @ 60V
  • Capacitance @ Vr, F: 14pF @ 1V, 1MHz
  • Operating Temperature - Junction: 150°C (Max)
