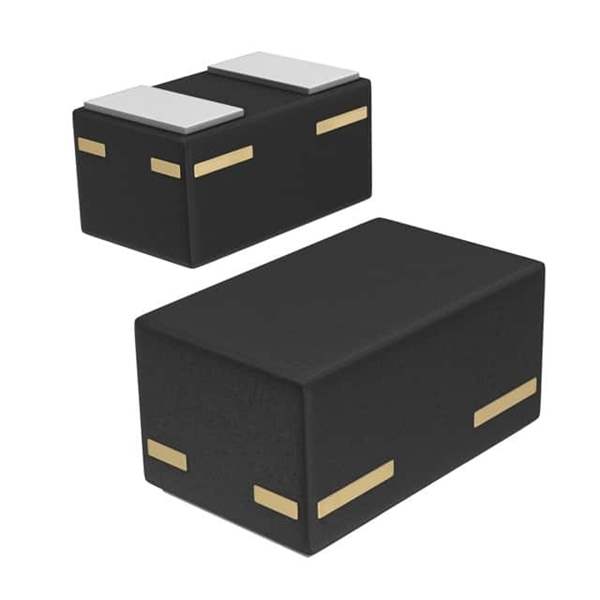

PESD36VS1UL,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD36VS1UL,315

Part No PESD36VS1UL,315
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 36VWM 80VC DFN1006-2 / 80V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006-2
Datasheet
PESD36VS1UL,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V (Max)
Voltage - Breakdown (Min) 38.2V
Voltage - Clamping (Max) @ Ipp 80V
Current - Peak Pulse (10/1000µs) 2.5A (8/20µs)
Power - Peak Pulse 150W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency 18pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package DFN1006-2
Base Product Number PESD36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 934066318315,1727-1308-6,568-10733-6-ND,568-10733-2-ND,1727-1308-2,1727-1308-1,568-10733-6,PESD36VS1UL,315-ND,568-10733-1,568-10733-1-ND,568-10733-2
Standard Package 10,000
Win Source Part Number 1084567-PESD36VS1UL,315
Ultra Librarian 3D Model Ultra Librarian PESD36VS1UL,315 CAD Model

Description

The Nexperia USA Inc. PESD36VS1UL,315 is a Zener diode that is designed for use in circuit protection applications.

  • Win Source Part Number: 1084567-PESD36VS1UL,315
  • Series: automotive, AEC-Q101 series
  • Channel: unidirectional channel diode
  • Reverse Standoff Voltage: 36V (Max)
  • Breakdown Voltage: 38.2V
  • Clamping Voltage: 80V @ Ipp
  • Peak Pulse Power: 150W
  • Mounting: surface mount device (SMD)
  • Package: SOD-882 package
