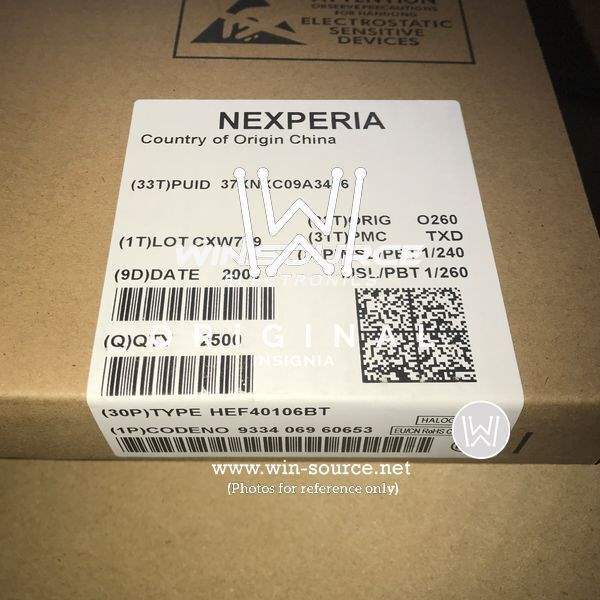

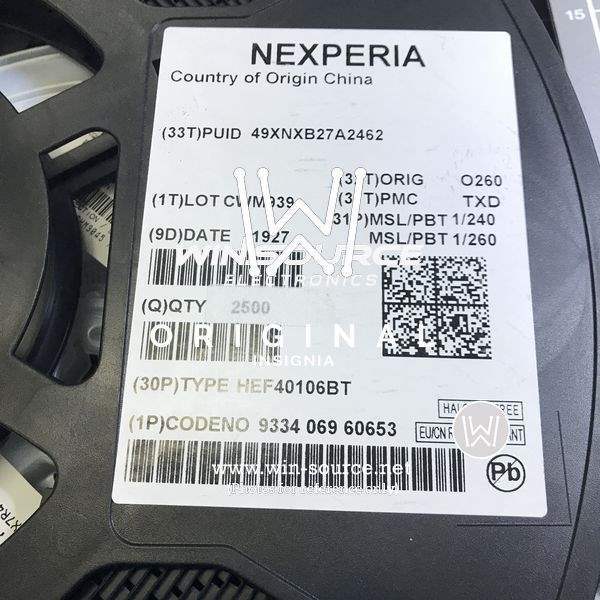

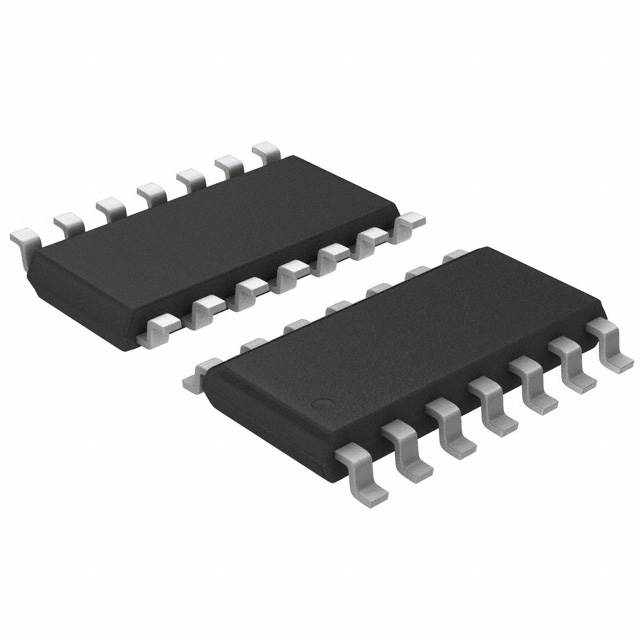

HEF40106BT,653 Nexperia USA Inc. HEF40106BT,653 real image HEF40106BT,653 label picture HEF40106BT,653 label picture 2
HEF40106BT,653 Nexperia USA Inc. HEF40106BT,653 real image HEF40106BT,653 label picture HEF40106BT,653 label picture 2
Same model may have multiple batches, images only for reference.

HEF40106BT,653

Part No HEF40106BT,653
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description Inverters Hex inverting Schmitt trigger
Datasheet
HEF40106BT,653 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 6
Number of Inputs 6
Features Schmitt Trigger
Supply Voltage - Operating 3 V to 15 V
Current - Quiescent (Max) 4μA
Current - Output High, Low 3.4mA, 3.4mA
Logic Level - Low 1.5 V to 4 V
Logic Level - High 3.5 V to 11 V
Max Propagation Delay @ V, Max CL 60ns @ 15V, 50pF
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 14-SO
Dimension 14-SOIC (0.154", 3.90mm Width)
Win Source Part Number 1043082-HEF40106BT,653
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HEF40106BT,653 CAD Model

Description

The Nexperia USA Inc. HEF40106BT,653 is a 14-SOIC (0.154", 3.90mm Width) packaged electronic component with 6 circuits.

  • Feature: Schmitt Trigger
  • Logic Type: Inverter
  • Inputs: 6
  • Operating Temperature: -40°C to 125°C
  • Supply Voltage: 3 V to 15 V
