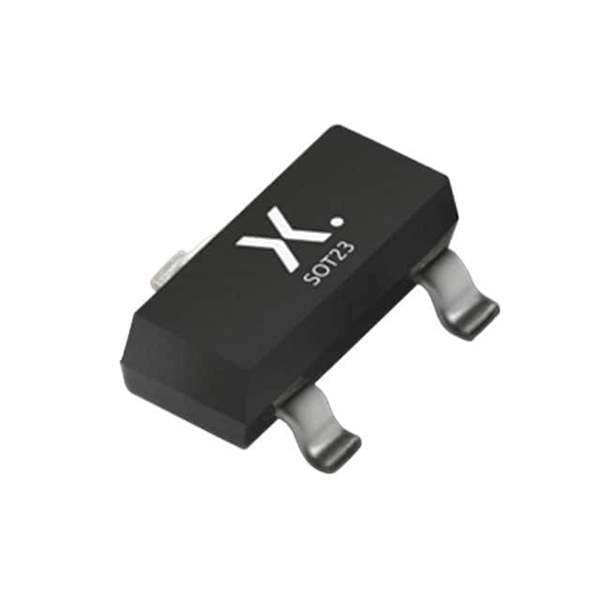

BAV199,235 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAV199,235

Part No BAV199,235
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 75V 160MA SOT23 / Diode Array 1 Pair Series Connection Standard 75 V 160mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Datasheet
BAV199,235 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Nexperia USA Inc.
Package Tape & Reel
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) (per Diode) 160mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 3 µs
Current - Reverse Leakage @ Vr 5 nA @ 75 V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Base Product Number BAV199
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1727-6382-2,BAV199 /T3-ND,1727-6382-1,BAV199,235-ND,1727-6382-6,568-8204-6-ND,BAV199 /T3,568-8204-6,568-8204-1,568-8204-2,568-8204-2-ND,934032640235,568-8204-1-ND
Standard Package 10,000
Win Source Part Number 1120398-BAV199,235
Ultra Librarian 3D Model Ultra Librarian BAV199,235 CAD Model

Description

The BAV199,235 is a rectifier diode array designed for use in a wide range of applications.

  • Reverse Voltage: 75V
  • Forward Voltage: 1.25V @ 150mA
  • Package: TO-236-3, SC-59, SOT-23-3
  • Power Dissipation: 160mW
  • Reverse Recovery Time: 3μs
  • Current Leakage: 5nA @ 75V
