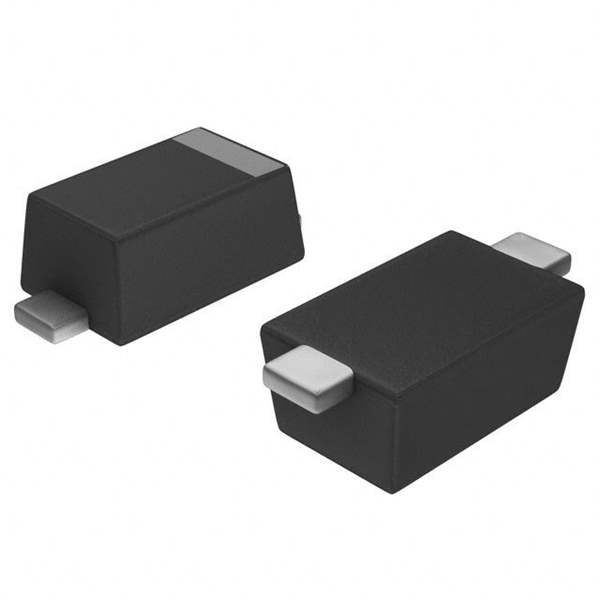

BAT46WH,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAT46WH,115

Part No BAT46WH,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Schottky Diodes & Rectifiers Schottky barrier diode
Datasheet
BAT46WH,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 250mA (DC)
Voltage - Forward (Vf) (Max) @ If 850mV @ 250mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 5.9ns
Current - Reverse Leakage @ Vr 9μA @ 100V
Capacitance @ Vr, F 39pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123F
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1022156-BAT46WH,115
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BAT46WH,115 CAD Model

Description

The Nexperia USA Inc. BAT46WH,115 is a SMD (SMT) mounted Schottky diode with a maximum reverse voltage of 100V and an average rectified current of 250mA (DC).

  • Forward Voltage: 850mV @ 250mA
  • Reverse Recovery Time: 5.9ns
  • Use: Discrete semiconductor products
  • Package: SOD-123F
  • Capacitance: 39pF @ 0V and 1MHz
  • Junction Temperature: Up to 150°C
  • Production Status: Active
  • Supply and Demand: Limited
