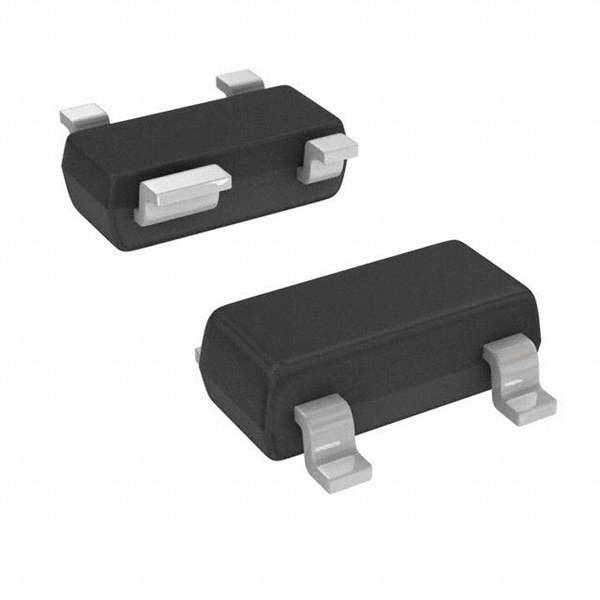

BAS56,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAS56,215

Part No BAS56,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 60V 200MA SOT143B
Datasheet
BAS56,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 200mA
Reverse Recovery Time (trr) 6ns
Current - Reverse Leakage @ Vr 100nA @ 120V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SOT-143B
Win Source Part Number 1022099-BAS56,215
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BAS56,215 CAD Model

Description

The Nexperia USA Inc. BAS56,215 is a standard diode with a voltage rating of 60V and a forward voltage of 1V @ 200mA.

  • Reverse Recovery Time: 6ns
  • Current Leakage: 100nA @ 120V
  • Mounting Type: SMD (SMT)
  • Package: Reel - TR
  • Diode Configuration: 2 Independent
  • Junction Temperature: 150°C (Max)
  • Category: Discrete Semiconductor Products
