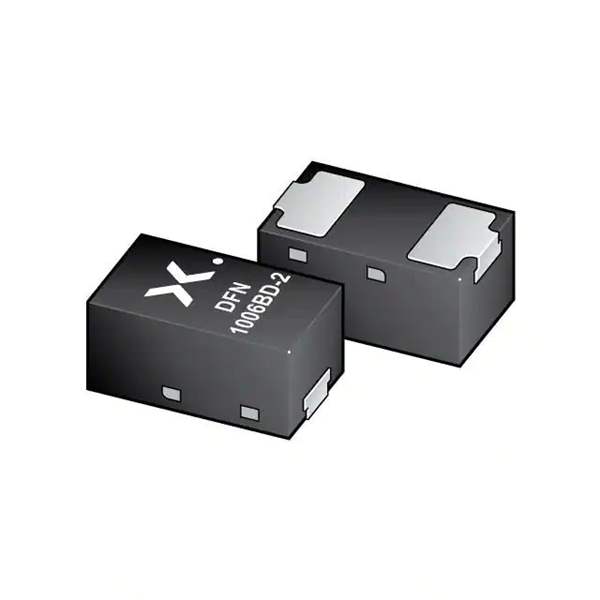

BAS40LS-QYL Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAS40LS-QYL

Part No BAS40LS-QYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 120MA 2DFN
Datasheet
BAS40LS-QYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 120mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 40 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 10 µA @ 40 V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-882
Supplier Device Package DFN1006BD-2
Operating Temperature - Junction 150°C
Base Product Number BAS40
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367014-BAS40LS-QYL
Ultra Librarian 3D Model Ultra Librarian BAS40LS-QYL CAD Model

Description

The BAS40LS-QYL is a single diode integrated circuit (IC) from Nexperia USA Inc. designed for rectifier applications and is part of the Automotive, AEC-Q100 series.

  • Diode Type: Schottky
  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 120mA
  • Forward Voltage: 1V @ 40mA
  • Small Signal Speed: less than 200mA
  • Reverse Leakage Current: 10μA @ 40V
  • Capacitance: 5pF @ 0V, 1MHz
  • Mounting: Surface Mount (SOD-882)
  • Packaging: Tape and Reel
  • REACH: Unaffected
  • Operating Temperature: 150°C
