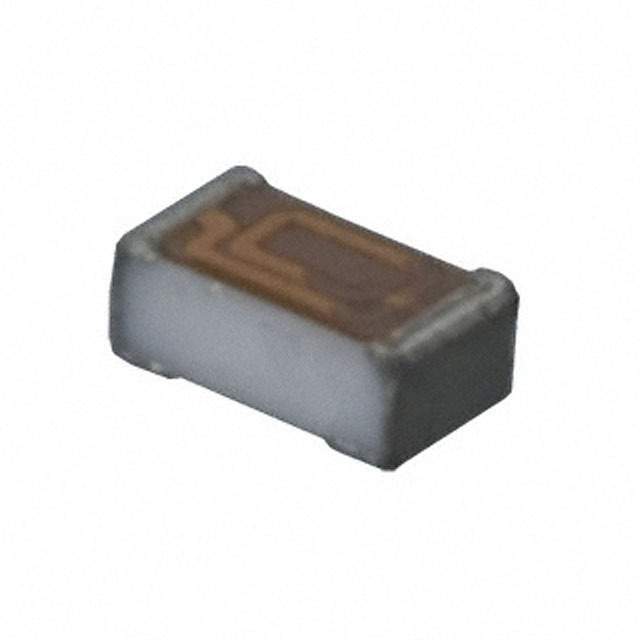

LQP15MN5N1B02D Murata Electronics North America LQP15MN5N1B02D Real Image
LQP15MN5N1B02D Murata Electronics North America LQP15MN5N1B02D Real Image
Same model may have multiple batches, images only for reference.

LQP15MN5N1B02D

Part No LQP15MN5N1B02D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 5.1NH 140MA 700 MOHM
Datasheet
LQP15MN5N1B02D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Thin Film
Material - Core Non-Magnetic
Inductance 5.1nH
Tolerance ±0.1nH
Current Rating 140mA
DC Resistance (DCR) 700 mOhm Max
Q @ Freq 13 @ 500MHz
Frequency - Self Resonant 6GHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 500MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.018" (0.45mm)
Win Source Part Number 020059-LQP15MN5N1B02D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LQP15MN5N1B02D CAD Model

Description

The Murata Electronics North America LQP15MN5N1B02D is a 5.1nH inductor designed for various applications such as filtering, impedance matching, and resonant circuits. It has the following specifications:

  • Current Rating: 140mA
  • Tolerance: ±0.1nH
  • Core Material: Non-magnetic
  • Q @ Freq: 13 @ 500MHz
  • Self-Resonant Frequency: 6GHz
  • Operating Temperature Range: -40°C to 85°C
  • Package: 0402 (1005 Metric)
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 700 mOhm Max
  • Popularity: High
