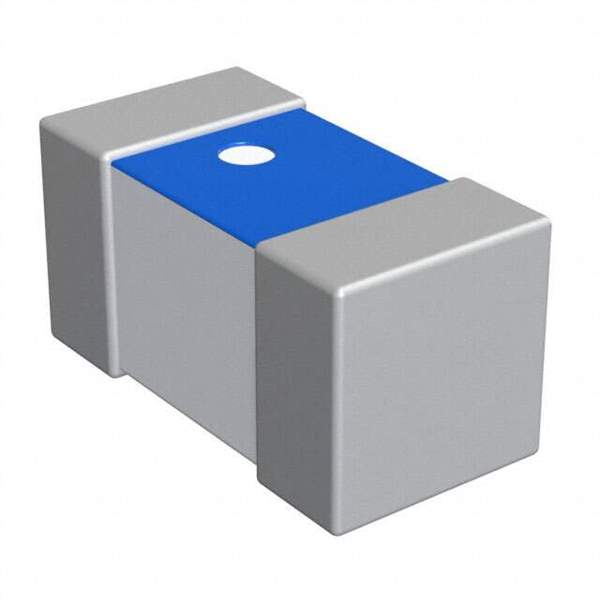

LQP03TN15NH02D

Part No LQP03TN15NH02D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 15NH 250MA 700 MOHM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Thin Film
Material - Core Non-Magnetic
Inductance 15nH
Tolerance ±3%
Current Rating 250mA
DC Resistance (DCR) 700 mOhm Max
Q @ Freq 12 @ 500MHz
Frequency - Self Resonant 2.6GHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 500MHz
Mounting SMD (SMT)
Case / Package 0201 (0603 Metric)
Height - Seated (Max) 0.013" (0.33mm)
Win Source Part Number 072074-LQP03TN15NH02D
Ultra Librarian 3D Model Ultra Librarian LQP03TN15NH02D CAD Model

Description

The Murata Electronics North America Thin Film Inductors are designed to support a variety of applications. This inductor model, Win Source Part Number 072074-LQP03TN15NH02D, is a high-quality product that is suitable for use in circuits requiring high-frequency applications. It is a low-popularity item with active status and is designed to provide high performance. The product is manufactured to meet high standards and is ideal for use in a wide range of applications. The family of thin film inductors is known for their high performance and long-term reliability.
