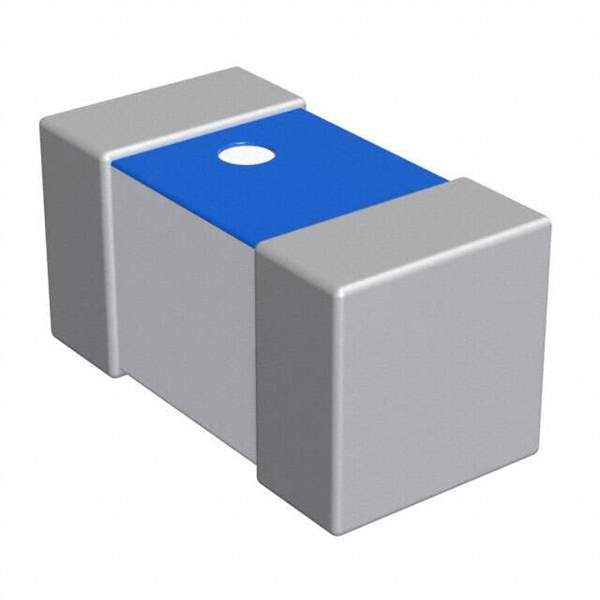

LQP03TG12NJ02D Real Image
Same model may have multiple batches, images only for reference.

LQP03TG12NJ02D

Part No LQP03TG12NJ02D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 12NH 180MA 1.78OHM SMD / 12 nH Unshielded Thick Film Inductor 180 mA 1.78Ohm Max 0201 (0603 Metric)
Datasheet
LQP03TG12NJ02D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Type Thick Film
Material - Core Non-Magnetic
Inductance 12 nH
Tolerance ±5%
Current Rating (Amps) 180 mA
Shielding Unshielded
DC Resistance (DCR) 1.78Ohm Max
Q @ Freq 11 @ 500MHz
Frequency - Self Resonant 3.7GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Mounting Surface Mount
Case / Package 0201 (0603 Metric)
Supplier Device Package 0201 (0603 Metric)
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.013" (0.33mm)
Base Product Number LQP03TG
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 490-12894-6,LQP03TG12NJ02D-ND,490-12894-2INACTIVE,LQP03TG12NJ02,490-12894-2,490-12894-1
Standard Package 15,000
Win Source Part Number 1328704-LQP03TG12NJ02D
Ultra Librarian 3D Model Ultra Librarian LQP03TG12NJ02D CAD Model

Description

The LQP03TG12NJ02D is a fixed inductor from Murata Electronics.

  • Mounting Type: Surface Mount Device
  • Package: 0201 (0603 Metric)
  • Inductance: 12 nH
  • Tolerance: ±5%
  • Q @ Freq: 11 @ 500MHz
  • Frequency - Self-Resonant: 3.7GHz
  • DC Resistance: 1.78Ohm Max
  • MSL Level: 1 (Unlimited)
  • Current Rating: 180 mA
  • Inductance Frequency for Test: 500 MHz
  • HTSUS: 8504.50.8000
  • ROHS3 Compliant: Yes
