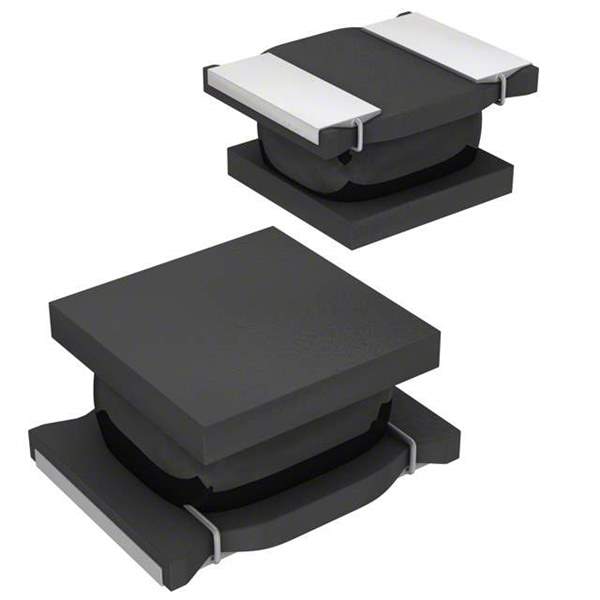

LQH32PH220MNCL Real Image
Same model may have multiple batches, images only for reference.

LQH32PH220MNCL

Part No LQH32PH220MNCL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22UH 550MA 822MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 550 mA 822mOhm Max Nonstandard
Datasheet
LQH32PH220MNCL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series LQH32
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 550 mA
Current - Saturation (Isat) 650mA
Shielding Shielded
DC Resistance (DCR) 822mOhm Max
Frequency - Self Resonant 20MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 1210 (3225 Metric)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.067" (1.70mm)
Base Product Number LQH32PH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 490-16004-2,490-16004-1,490-16004-6
Standard Package 2,000
Win Source Part Number 978947-LQH32PH220MNCL
Ultra Librarian 3D Model Ultra Librarian LQH32PH220MNCL CAD Model

Description

The Murata Electronics fixed inductor is a high-quality surface mount component.

  • Series: LQH32
  • Type: Drum Core, Wirewound
  • Inductance: 22 µH
  • Shielded: Yes
  • Core Material: Ferrite
  • Package: Tape & Reel
  • Terminations: 2
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
