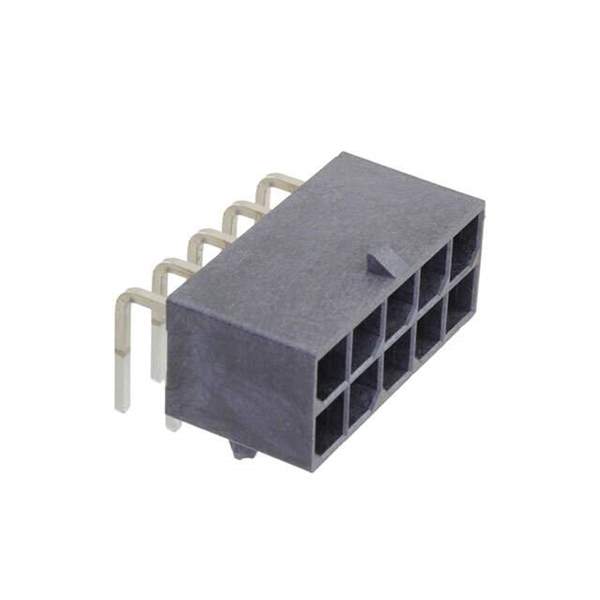

1720641010 Real Image
Same model may have multiple batches, images only for reference.

1720641010

Part No 1720641010
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 5.7MM / Connector Header Through Hole, Right Angle 10 position 0.224" (5.70mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.224" (5.70mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.224" (5.70mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.572" (14.53mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide, Glow Wire Compliant
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Telecommunications
Base Product Number 172064
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM11213,172064-1010,1720641010-ND
Standard Package 500
Win Source Part Number 1332915-1720641010
Ultra Librarian 3D Model Ultra Librarian 1720641010 CAD Model

Description

The 1720641010 is a high-quality male pin header connector manufactured by Molex.

  • Type: Designed for rectangular connectors
  • Package: Tray package
  • Shrouding: Shrouded - 4 wall shrouding
  • Style: Board to cable/wire style
  • Pitch-Mating: 0.224" (5.70mm)
  • Contact Finish-Mating: Gold
  • Application Suitability: Cost-effective and reliable solution for various applications, including automotive, general purpose, industrial, and telecommunications.
