Product Overview: MAX3078EESA+T from Maxim Integrated

The MAX3078EESA+T is a robust, high-speed transceiver module from Maxim Integrated, designed to facilitate communication over RS-485/RS-422 networks. This component is particularly suitable for industrial applications where reliable data transmission is critical under harsh environmental conditions. It operates over a wide temperature range and includes multiple features that make it an excellent choice for networked communication systems.

Key Features

• High-Speed Operation: The MAX3078EESA+T is capable of data rates up to 250kbps, making it suitable for applications requiring fast data transmission.
• Extended Temperature Range: The device is designed to operate reliably in extreme environments, with a temperature range from -40°C to +85°C.
• Integrated Protection: It includes fail-safe features that ensure a logic-high receiver output when the inputs are open, shorted, or idle, providing additional reliability in the event of a fault condition.
• Half-Duplex Communication: The transceiver supports half-duplex communication, allowing for bidirectional communication over a single pair of wires.
• Low-Power Shutdown Mode: An energy-saving feature that reduces power consumption when the transceiver is not in active use.
• True Fail-Safe Receiver: The device guarantees a known state if the receiver inputs are floating, shorted, or on a terminated but undriven (idle) bus.

Applications

The MAX3078EESA+T is ideal for various applications, including industrial control systems, HVAC systems, building automation, and networked sensors. Its robust design ensures that communication is maintained even in the presence of electrical noise and other potential disruptions common in industrial settings.

Package and Quality

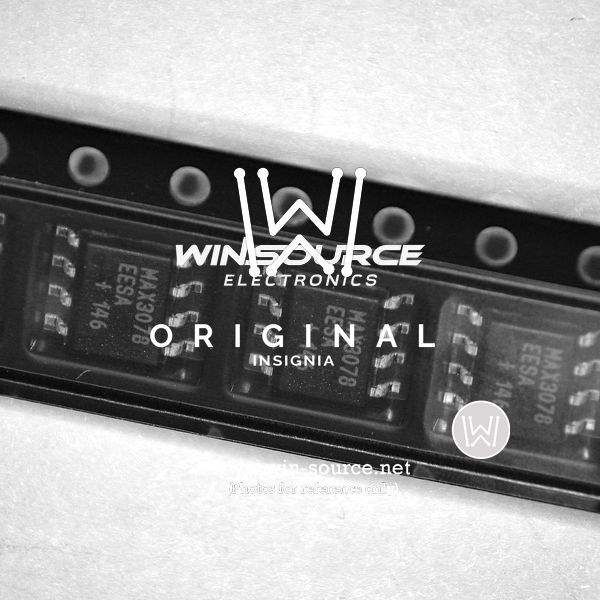

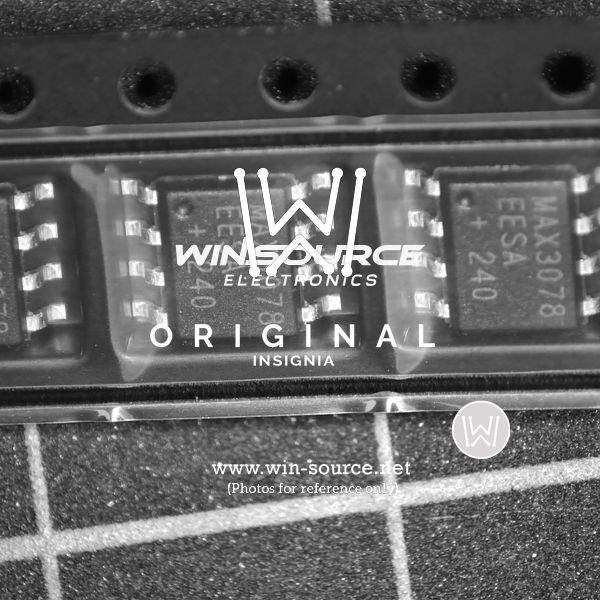

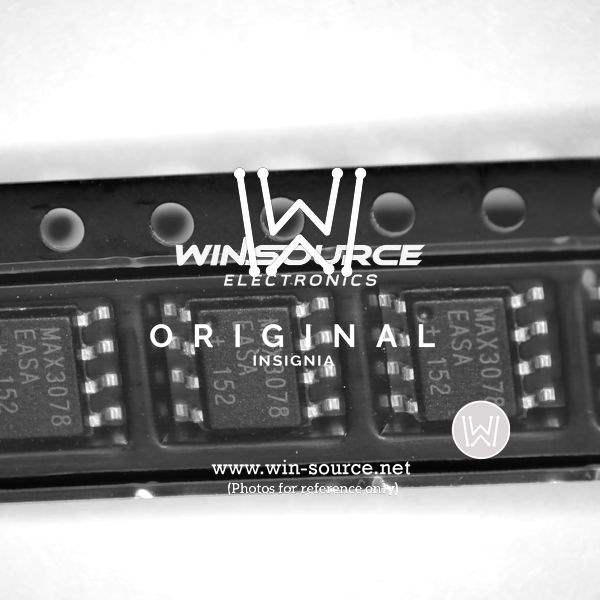

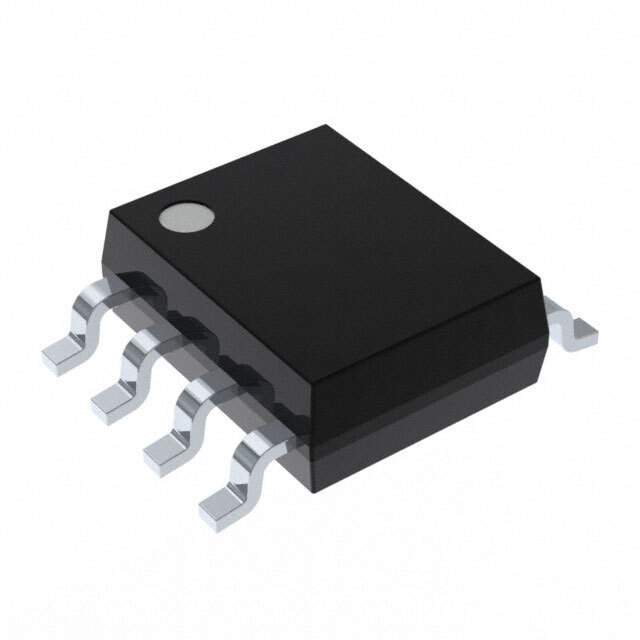

This transceiver comes in a compact 8-pin NSOIC package, making it easy to integrate into a wide range of circuit designs. Maxim Integrated ensures high-quality standards, and the MAX3078EESA+T is no exception, providing reliable performance for critical communication systems.

Overall, the MAX3078EESA+T from Maxim Integrated stands out as a high-performance RS-485/RS-422 transceiver, offering a combination of speed, reliability, and protection features that make it a top choice for designers and engineers working on industrial communication systems.
