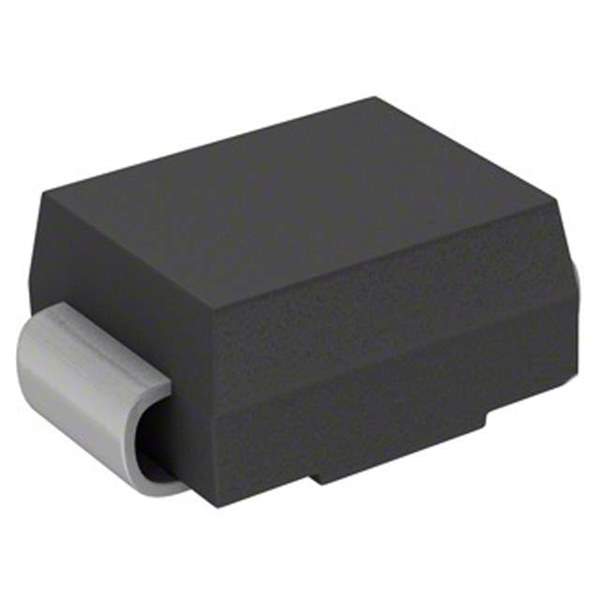

SMBJ58A

Part No SMBJ58A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 58VWM 93.6VC SMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Standard Package 1
Category Circuit Protection
Family TVS - Diodes
Series SMBJ
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 58V
Voltage - Breakdown (Min) 64.4V
Voltage - Clamping (Max) @ Ipp 93.6V
Current - Peak Pulse (10/1000µs) 6.5A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style SMD/SMT
Package DO-214AA SMB
Manufacturer Device Package DO-214AA (SMBJ)
Catalog SMBJ Series
Kits SMBJ-A-KIT - KIT TVS DIODE 600W UNI-DIR SMB
Win Source Part Number 084251-SMBJ58A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Communications & Networking
Ultra Librarian 3D Model Ultra Librarian SMBJ58A CAD Model

Description

SMBJ58A from Littelfuse Inc. is a TVS diode designed for transient voltage protection in electronic circuits that may be exposed to electrostatic discharge, inductive switching spikes, or other short-duration overvoltage events. Components in this category are commonly used to help protect power rails, industrial controls, communications interfaces, consumer electronics, and automotive-adjacent designs where surge robustness is important. Engineers typically select a TVS diode like SMBJ58A to improve system reliability, reduce field failures, and support compliance-oriented protection strategies at the board level. As a Littelfuse device, it is positioned within a widely recognized protection portfolio used across many embedded and power-related applications. The lifecycle status for this part is currently information not available, so teams should confirm availability directly with Littelfuse or authorized distributors before committing to new designs. RoHS compliance information is also not available in the provided data and should be verified using the latest manufacturer datasheet or compliance documentation.
