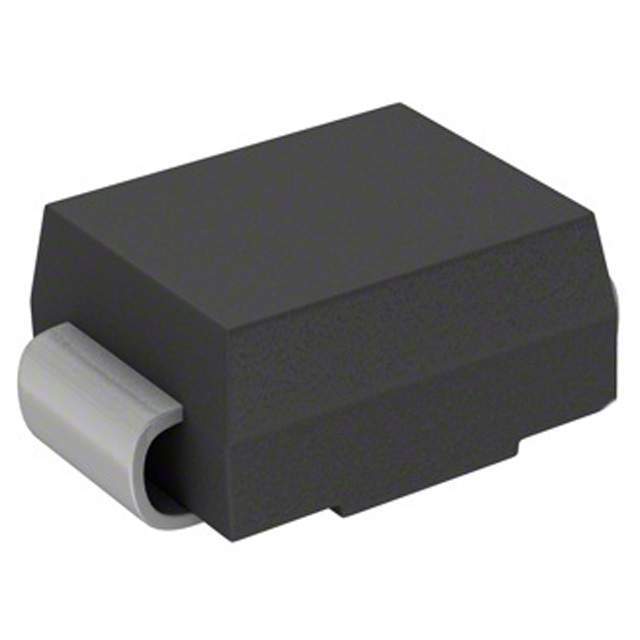

The SMBJ5.0A is a Transient Voltage Suppressor (TVS) diode manufactured by Littelfuse, Inc. It is engineered to protect sensitive electronic devices and circuits from voltage transients caused by electrostatic discharge (ESD), inductive switching, and lightning strikes. It is part of the SMBJ series, which is known for its compact size and efficient overvoltage protection capabilities.

Applications:

• Protection of I/O Interfaces: Specifically designed to safeguard I/O ports and communication lines, such as USB, Ethernet, and RS-232, from ESD and electrical overstress.
• Automotive Electronics: Used in automotive applications to protect sensitive electronic components from voltage surges and transients that occur in vehicle electrical systems.
• Industrial Control Systems: Provides transient voltage protection for components in industrial automation and control equipment.
• Consumer Electronics: Protects various consumer electronic devices, including smartphones, tablets, and audio-visual equipment, from damage caused by voltage spikes.
• Power Supplies: Offers overvoltage protection in power supply units, ensuring stable and reliable operation.

Features:

• Unidirectional Configuration: Provides unidirectional protection, effectively suppressing positive voltage transients.
• Low Clamping Voltage: Offers a low clamping voltage to protect sensitive circuitry from overvoltage conditions.
• Fast Response Time: Quickly responds to transient voltage events, minimizing their impact on protected components.
• High Surge Capability: Designed to withstand high surge currents, ensuring robustness in harsh environments.
• SMB Package: Packaged in a compact SMB (DO-214AA) package, which allows for efficient use of board space.
• Lead-Free Finish: Compliant with lead-free standards, making it environmentally friendly.

Benefits:

• Enhanced System Reliability: Protects sensitive electronic components, leading to improved overall system reliability and longer product lifespan.
• Reduced Downtime: Minimizes equipment downtime by preventing failures caused by voltage surges, thus reducing maintenance costs.
• Cost-Effective Protection: Provides a cost-effective solution for safeguarding electronic equipment from transient voltage damage.
• Improved Safety: Enhances safety by preventing electrical hazards associated with overvoltage conditions.
• Environmental Compliance: Lead-free finish ensures compliance with environmental regulations.

Additional Details:

The SMBJ5.0A has a standoff voltage of 5.0V. It is capable of handling a peak pulse power of 600W with a 10/1000µs waveform. The operating temperature range typically spans from -65°C to +150°C. This TVS diode is designed for surface mount applications and comes in the standard SMB package. It is a unidirectional device, meaning it primarily protects against positive voltage transients. The part number SMBJ5.0A indicates a surface mount TVS diode with a nominal breakdown voltage around 5.0 volts.
