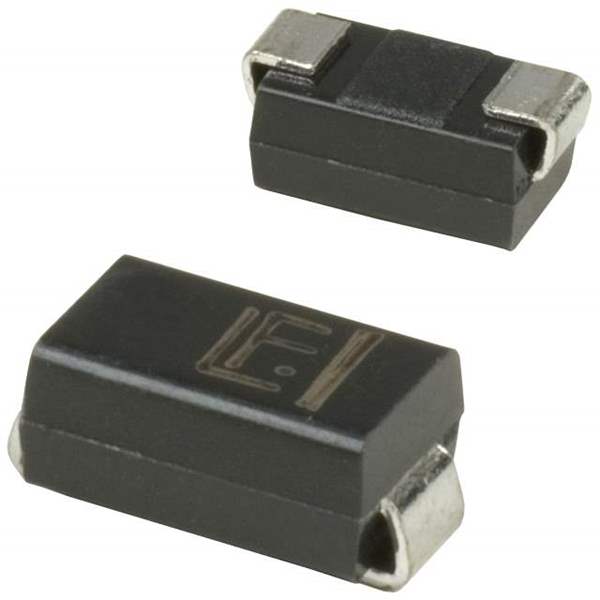

SMAJ75CA Real Image
Same model may have multiple batches, images only for reference.

SMAJ75CA

Part No SMAJ75CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 75VWM 121VC SMA / TVS Diode Single Bi-Dir 7.5V 400W 2-Pin SMA T/R
Datasheet
SMAJ75CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series SMAJ
Packaging Reel package
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 75V
Minimum Breakdown Voltage 83.3V
Maximum Clamping Voltage 121V
Current - Peak Pulse (10/1000μs) 3.3A
Power - Peak Pulse 400W
Power Line Protection No
Applications General
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package DO-214AC, SMA
Manufacturer Package DO-214AC (SMA)
Win Source Part Number 794618-SMAJ75CA
Popularity Medium
Supply and Demand Status Limited
Family Name SMAJ7.5CA
Introduction Date June 01, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SMAJ75CA CAD Model

Description

The Littelfuse SMAJ7.5CA is a zener diode designed to protect electronic circuits from high-voltage transients.

  • Voltage Reverse Standoff: 75V
  • Maximum Clamping Voltage: 121V
  • Peak Pulse Current: 3.3A (10/1000μs)
  • Peak Pulse Power: 400W
  • Package: DO-214AC, SMA
  • Type: Bidirectional
  • Channels: 1
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Applications: General
  • Series: SMAJ
  • Alternative Parts: P4SMAJ7.5CA_R1_00001, P4SMAJ7.5CA_R2_00001, SMAJ7.5CA
  • Halogen-Free: Yes
  • RoHS Compliant: Yes
