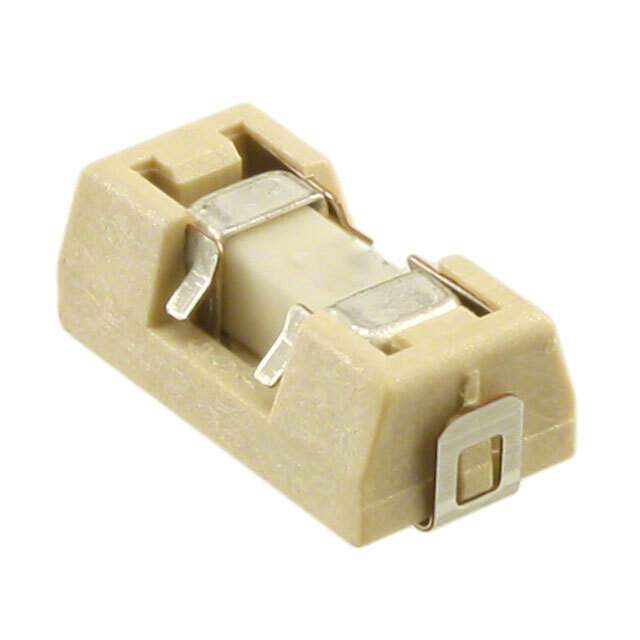

0154005.DR Real Image 0154005.DR real image
0154005.DR Real Image 0154005.DR real image
Same model may have multiple batches, images only for reference.

0154005.DR

Part No 0154005.DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 5A 125VAC/VDC 2SMD / Fuse Chip Very Fast Acting 5A 125V SMD Solder Pad 9.73 X 5.03 X 3.81mm T/R CSA/PSE/UL
Datasheet
0154005.DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series OMNI-BLOK 154
Packaging Reel package
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 5A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast
Package 2-SMD, Square End Block with Holder
Mounting Holder/Surface Mount
Breaking Capacity @ Rated Voltage 50A
Melting I2t 5.566
Approvals PSE, UL
Operating Temperature Range -55°C ~ 125°C
Dimension 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)
Resistance 0.0125 Ohm
Win Source Part Number 759942-0154005.DR
Popularity Medium
Supply and Demand Status Limited
Family Name 154
ECCN EAR99
Country of Origin Philippines, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 0154005.DR CAD Model

Description

The Littelfuse Inc. 759942-0154005.DR electronic component is a circuit protection product in the OMNI-BLOK 154 series.

  • Current Rating: 5A
  • Voltage Rating: 125V AC and DC
  • Response Time: Fast
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 5.566
  • Approvals: PSE and UL
  • Mounting Style: Holder/surface mount
  • Resistance: 0.0125 Ohm
  • Dimension: 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)
  • Alternative Parts (cross-reference): 0154005.; 0154005.DRT; and ECCN is EAR99
  • Country of Origin: Philippines, United States of America
  • Halogen Free Compliant: Yes
  • Supply and Demand Status: Limited
