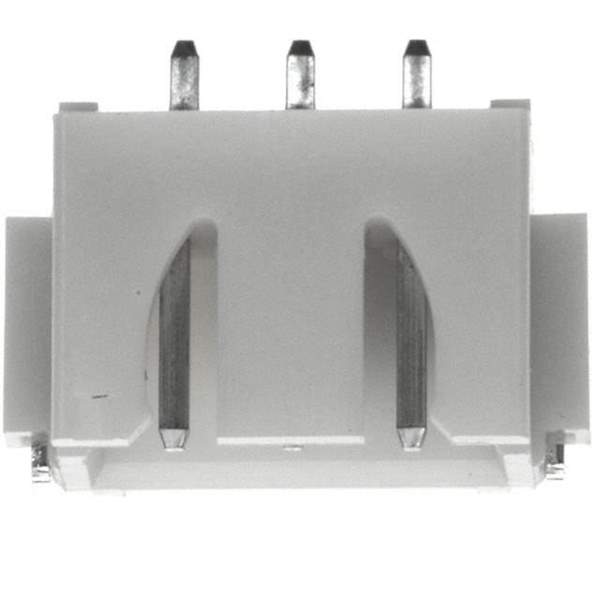

S3B-XH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S3B-XH-SM4-TB(LF)(SN)

Part No S3B-XH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER XH SMD 3POS 2.5MM / Conn Shrouded Header HDR 3 POS 2.5mm Solder RA SMD T/R
Datasheet
S3B-XH-SM4-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series XH
Packaging Tape in Box
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Win Source Part Number 793611-S3B-XH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name XH
Introduction Date July 11, 2001
ECCN EAR99
Country of Origin Japan, Republic of Korea
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian S3B-XH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 793611-S3B-XH-SM4-TB(LF)(SN) is a header connector.

  • Shrouding: Shrouded - 4 wall
  • Positions Loaded: 3
  • Termination: Soldering
  • Contact Type: Male Pin
  • Fastening Type: Detent Lock
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Pitch - Mating: 0.098" (2.50mm)
  • Contact Finish - Mating: Tin
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Insulation Color: Natural
  • Category: Connectors, Interconnects
  • Popularity: Medium
