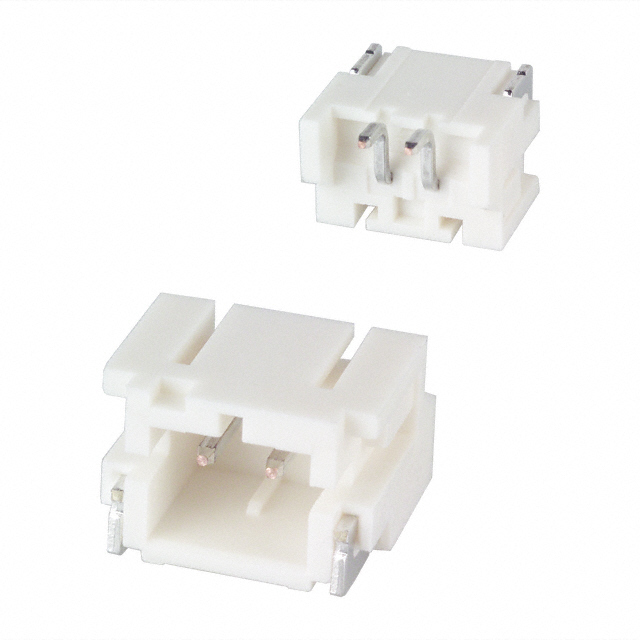

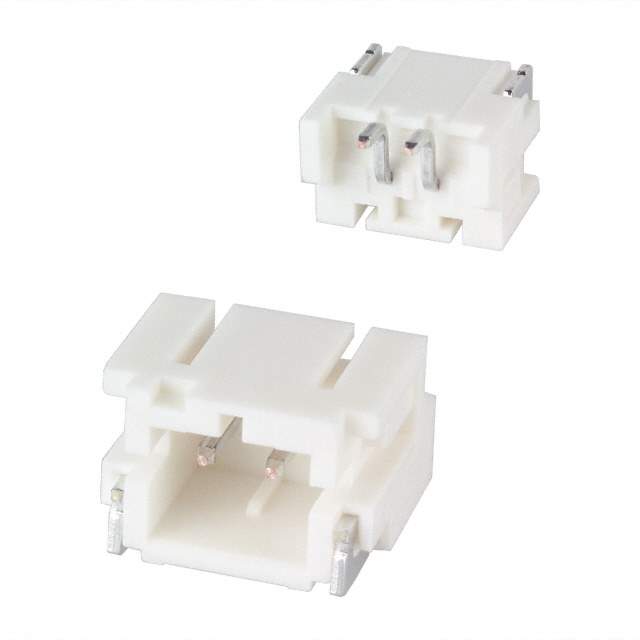

S2B-PH-SM4-TB(LF)(SN) JST Sales America Inc. S2B-PH-SM4-TB(LF)(SN) Real Image S2B-PH-SM4-TB(LF)(SN) real image
S2B-PH-SM4-TB(LF)(SN) JST Sales America Inc. S2B-PH-SM4-TB(LF)(SN) Real Image S2B-PH-SM4-TB(LF)(SN) real image
Same model may have multiple batches, images only for reference.

S2B-PH-SM4-TB(LF)(SN)

Part No S2B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802031-S2B-PH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S2B-PH-SM4-TB(LF)(SN) CAD Model

Description

The 802031-S2B-PH-SM4-TB(LF)(SN) connector is a header connector from JST Sales America Inc.

  • Connector Type: Header
  • Positions: 2
  • Mounting: Surface Mount, Right Angle
  • Locking Feature: Detent Lock
  • Material: Copper Alloy
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Packaging: Reel
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Pitch: 0.079 inches
  • Temperature Range: -25°C to 85°C
  • ECCN Compliance: EAR99
  • Supply/Demand Status: Balanced
