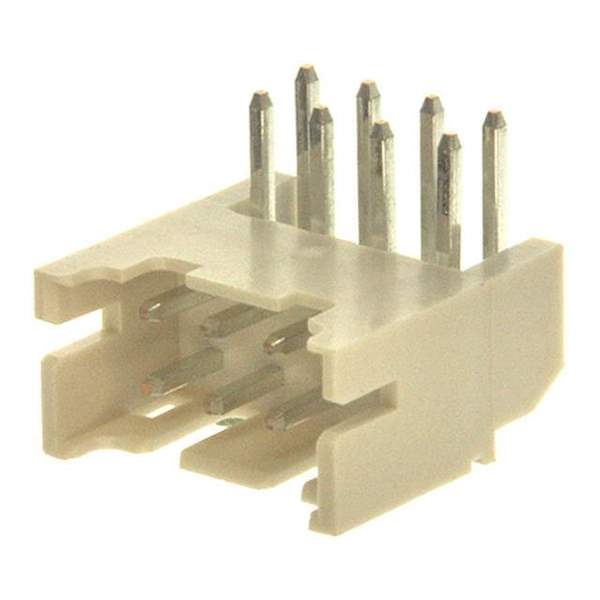

S8B-PHDSS(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S8B-PHDSS(LF)(SN)

Part No S8B-PHDSS(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.197" (5.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S8B-PHDS
Other Names S8B-PHDSS(LF)(SN)(P),455-2256,S8B-PHDSS(LF) (SN)(P),S8BPHDSSLFSNP
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293277-S8B-PHDSS(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S8B-PHDSS(LF)(SN) CAD Model

Description

The PHD series header connector from JST Sales America Inc. is a board-to-cable/wire connector that has a pitch of 0.079" (2.00mm) and has eight positions loaded with male pins.

  • Series: PHD
  • Style: Board-to-Cable/Wire
  • Pitch: 0.079" (2.00mm)
  • Positions: 8
  • Contact Type: Male Pins
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Package: Bulk
  • Standard Package: 500
  • Height: 0.197" (5.00mm)
  • Insulation Height: 0.197" (5.00mm)
  • Mounting Type: Through Hole
  • Mounting Orientation: Right-Angle
  • Operating Temperature: -25°C ~ 85°C
