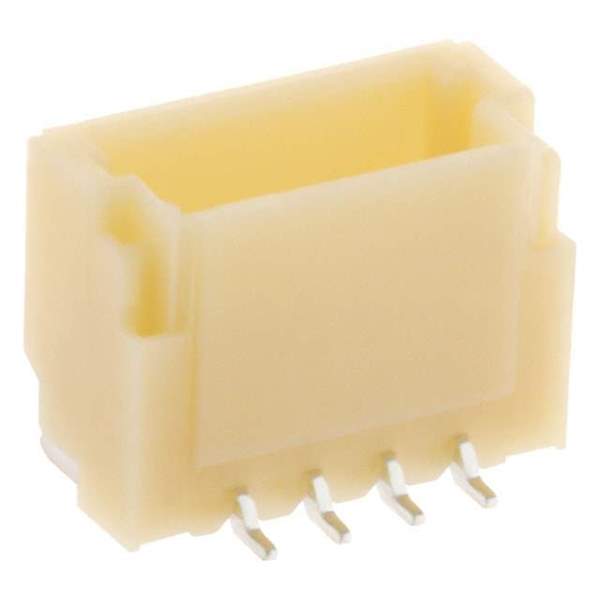

BM04B-SRSS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM04B-SRSS-TBT(LF)(SN)

Part No BM04B-SRSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series SH/SR
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Base Product Number BM04B-SR
Other Names BM04B-SRSS-TBT(LF)(SN)(P),BM04BSRSSTBTLFSNP,BM04B-SRSS-TBTLFSN,455-2874-6,(G)BM04B-SRSS-TBT(LF)(SN)(P),BM04B-SRSS-TBT(LF)(SN),455-2874-2,BM04B-SRSS-TBT(LF)(SN)(P),455-2874-1,Q3474139B
Standard Package 1,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293265-BM04B-SRSS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM04B-SRSS-TBT(LF)(SN) CAD Model

Description

The BM04B-SR series header connector is an ideal solution for board-to-cable/wire applications.

  • Series: BM04B-SR
  • Style: Board-to-Cable/Wire
  • Shrouding: Shrouded, 4 Walls
  • Fastening Type: Push-Pull
  • Insulation Material: Polyamide (PA) and Nylon
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Positions Loaded: All 4
  • Termination: Solder
  • Mated Stacking Heights: 4.9mm
  • Insulation Height: 0.167" (4.25mm)
  • Contact Shape: Square
  • Contact Type: Male Pin
  • Temperature Range: -25°C to 85°C
  • Package: Tape & Reel
  • Standard Package: 1,500 Units
  • Manufacturer: JST Sales America Inc.
