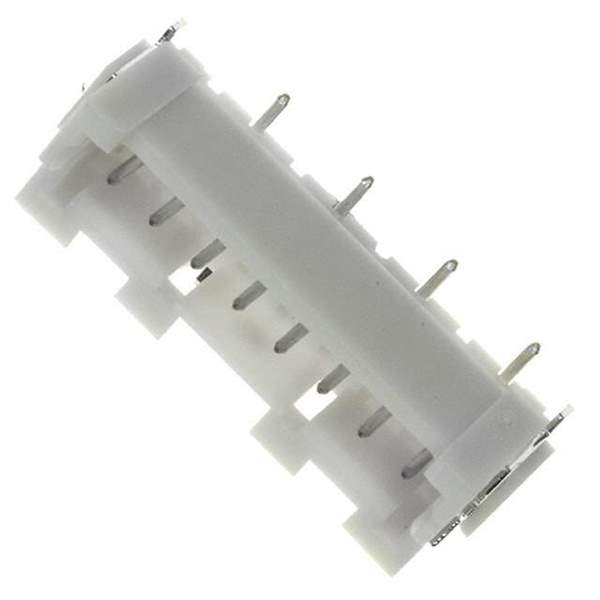

BM08B-XASS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM08B-XASS-TF(LF)(SN)

Part No BM08B-XASS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 8POS 2.5MM / Connector Header Surface Mount 8 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.370" (9.40mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.9mm
Base Product Number BM08B-XA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names BM08BXASSTFLFSN,455-2027-1,455-2027-2,455-2027-6
Standard Package 500
Win Source Part Number 1116197-BM08B-XASS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM08B-XASS-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. BM08B-XA is a connector with a rectangular header and male pins. JST Sales America Inc. manufactures the BM08B-XA.

  • Number of Positions: 8
  • Positions Loaded: All
  • Connector Type: Header with Male Pins
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Current Rating: 3Amps
