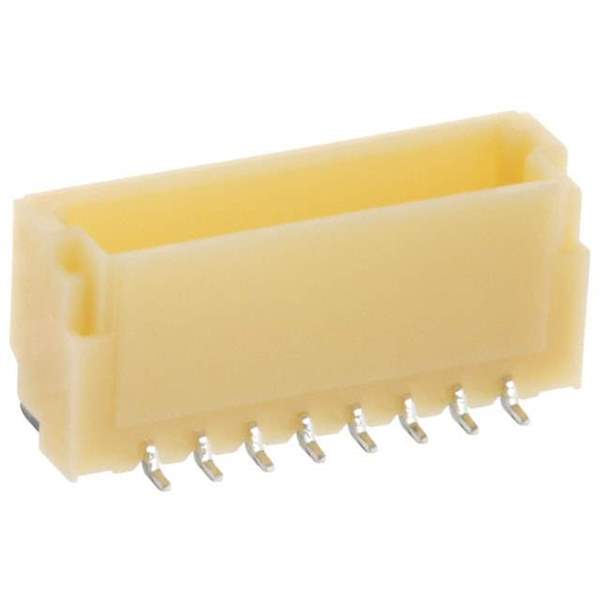

BM08B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM08B-SRSS-TB(LF)(SN)

Part No BM08B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 8POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759164-BM08B-SRSS-TB(LF)(SN)
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BM08B-SRSS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 759164-BM08B-SRSS-TB(LF)(SN) is an SMD connector with 8 positions and push-pull fastening type.

  • Contact Type: male pin
  • Positions Loaded: all
  • Voltage Rating: 50V
  • Current Rating: 0.7A
  • Design Style: board to cable/wire
  • Pitch-Mating: 0.039" (1.00mm)
  • Contact Finish-Mating and Post: tin
  • Supply and Demand Status: currently in balance
