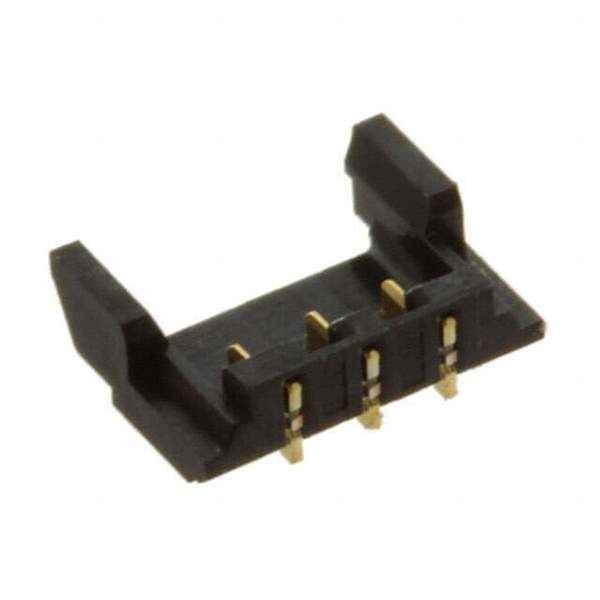

BM03B-ADHKS-GAN-ETB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM03B-ADHKS-GAN-ETB(LF)(SN)

Part No BM03B-ADHKS-GAN-ETB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 3POS 1.3MM / Connector Header Surface Mount, Right Angle 3 position 0.051" (1.30mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ADH
Package Tape & Reel
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.051" (1.30mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.069" (1.75mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 3A
Voltage Rating 30V
Base Product Number BM03B-AD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2900-6,BM03BADHKSGANETBLFSN,455-2900-1,455-2900-2
Standard Package 5,000
Win Source Part Number 996411-BM03B-ADHKS-GAN-ETB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM03B-ADHKS-GAN-ETB(LF)(SN) CAD Model

Description

The JST Sales America Inc. connector with part number 996411-BM03B-ADHKS-GAN-ETB(LF)(SN) is a male blade header suitable for use in electronic devices such as computers, smartphones, and tablets.

  • Mounting Type: Surface mount, right angle
  • Shrouding: Shrouded with 3 walls
  • Pitch-Mating: 0.051 inches
  • Voltage Rating: 30V
  • RoHS Compliant: Yes
  • Current Rating: 3A
