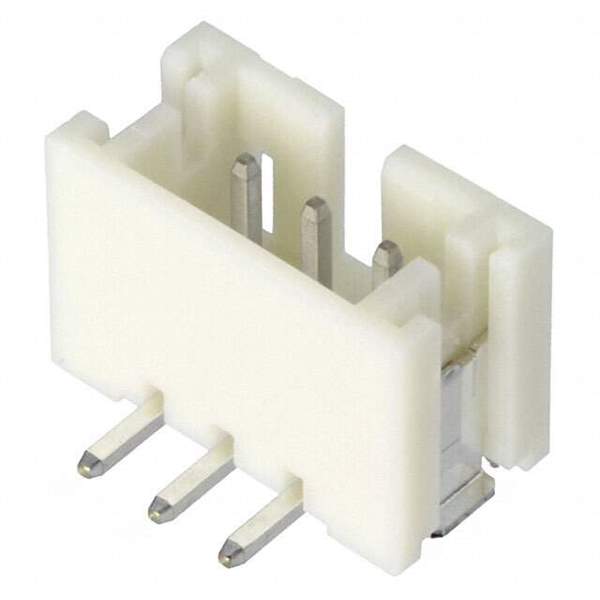

B3B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B3B-PH-SM4-TB(LF)(SN)

Part No B3B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 3POS 2MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Win Source Part Number 752148-B3B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian B3B-PH-SM4-TB(LF)(SN) CAD Model

Description

The B3B-PH-SM4-TB(LF)(SN) is a 3-position header connector with a pitch of 0.079" (2.00mm).

  • Positions: 3
  • Pitch: 0.079" (2.00mm)
  • Mounting: Surface-mount
  • Design: Shrouded, 4-wall
  • Series: PH series
  • Package: Reel package of 1000 units
  • Operating Temperature Range: -25°C to 85°C
  • Compliance: ECCN EAR99 compliant
  • Applications: Suitable for use in a wide range of applications, including board-to-cable/wire connections
