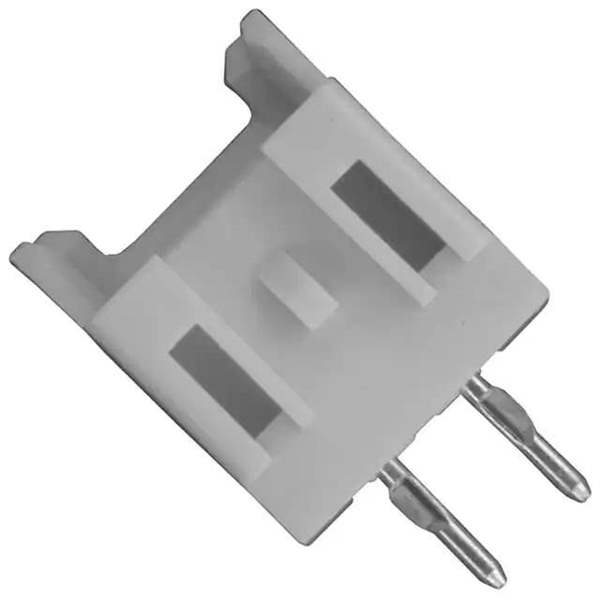

B02B-XASK-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B02B-XASK-1(LF)(SN)

Part No B02B-XASK-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.5MM / Connector Header Through Hole 2 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.346" (8.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.3mm
Base Product Number B02B-XAS
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850650-B02B-XASK-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B02B-XASK-1(LF)(SN) CAD Model

Description

The 850650-B02B-XASK-1(LF)(SN) is a male pin header connector from the XA series of rectangular connectors.

  • Positions: 2
  • Termination: Press-Fit and Solder
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Mated Stacking Heights: 11.3mm
  • Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Contact Finish: Tin
  • Shrouded: 4 Walls
  • Mounting Type: Through Hole
  • Style: Board to Cable/Wire
  • Operating Temperature: -25°C to 85°C
  • Contact Shape: Circular
  • Contact Length: 0.134" (3.40mm)
  • Status: Active
  • Standard Package: 1,000 pcs
