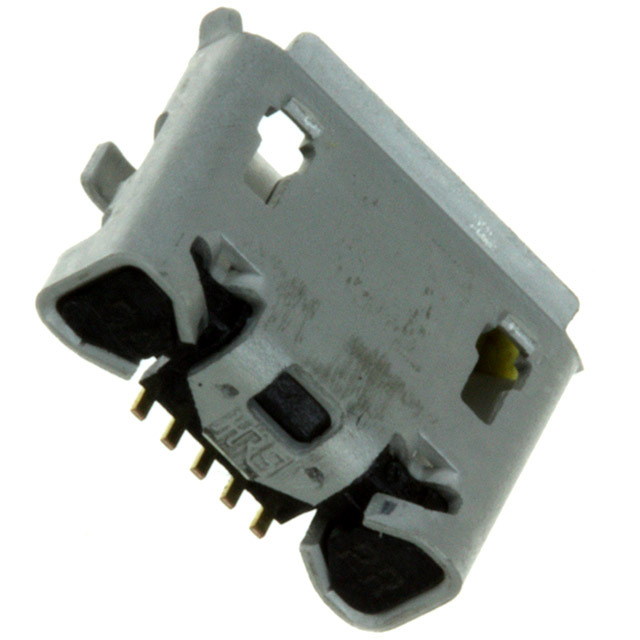

ZX62-B-5PA(11) Hirose Electric Co Ltd ZX62-B-5PA(11) Real Image ZX62-B-5PA(11) label picture
ZX62-B-5PA(11) Hirose Electric Co Ltd ZX62-B-5PA(11) Real Image ZX62-B-5PA(11) label picture
Same model may have multiple batches, images only for reference.

ZX62-B-5PA(11)

Part No ZX62-B-5PA(11)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT MICRO USB B SMD R/A / Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Pick and Place, Solder Retention
Temperature Range - Operating -30°C to 85°C
Number of Ports 1
Current Rating 1.8A
Voltage Rating 30VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 111121-ZX62-B-5PA(11)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name ZX62-B-5PA(11)
Introduction Date January 01, 2007
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ZX62-B-5PA(11) CAD Model

Description

This electronic component is a USB micro B connector manufactured by Hirose Electric Co Ltd.

  • Win Source Part Number: 111121-ZX62-B-5PA(11)
  • Category: Connectors, Interconnects
  • Mounting: Surface mount, right angle
  • Status: Obsolete
  • Popularity: High
  • REACH: Unaffected
  • HTSUS: 8536.69.4020
