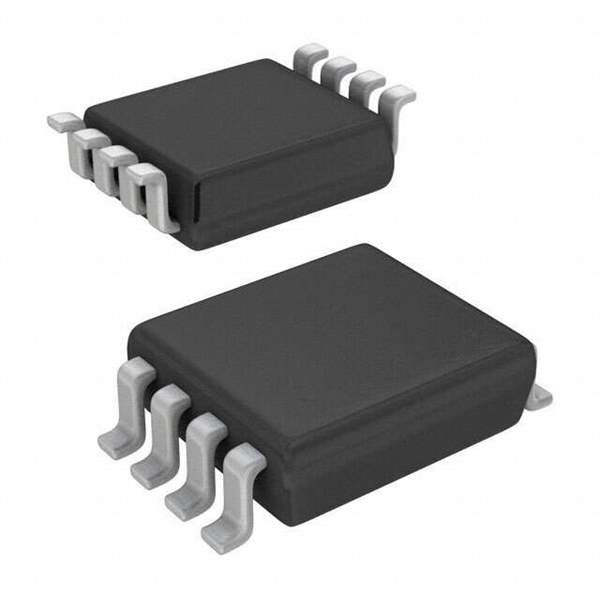

NC7SV74K8X Real Image
Same model may have multiple batches, images only for reference.

NC7SV74K8X

Part No NC7SV74K8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Flip Flops
Description IC D-TYPE POS TRG SNGL US8
Datasheet
NC7SV74K8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Purpose Set(Preset) and Reset
Type D-Type
Output Type Differential
Number of Elements 1
Number of Bits per Element 1
Max Frequency 200MHz
Max Propagation Delay @ V, Max CL 2.8ns @ 3.3V, 30pF
Trigger Type Positive Edge
Current - Output High, Low 24mA, 24mA
Supply Voltage - Operating 0.9 V to 3.6 V
Current - Quiescent 900μA
Input Capacitance 2pF
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Dimension 8-VFSOP (0.091", 2.30mm Width)
Win Source Part Number 059879-NC7SV74K8X
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7SV74K8X CAD Model

Description

The NC7SV74K8X is a D-type flip-flop IC that consists of a differential output type and one element with one bit per element.

  • Maximum quiescent current: 900μA
  • Input capacitance: 2pF
  • Maximum propagation delay at V and Max CL: 2.8ns @ 3.3V and 30pF
  • Package: 8-VFSOP (0.091", 2.30mm Width)
  • Temperature range: -40°C to 85°C
  • Purpose: set (preset) and reset
  • Supply voltage: 0.9V to 3.6V
