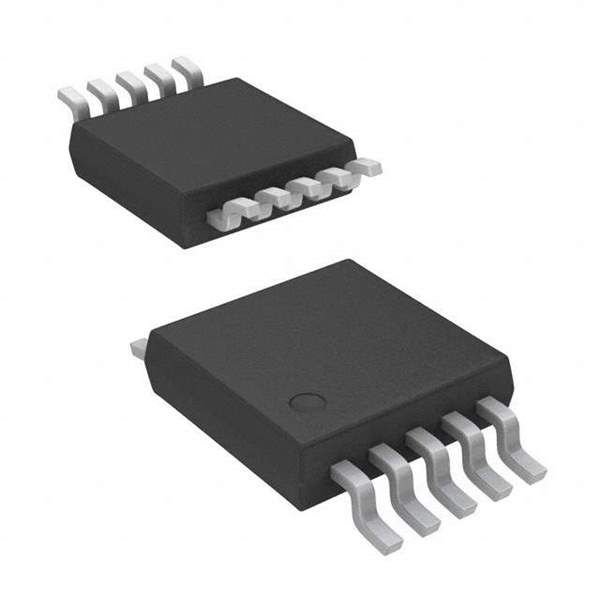

FSA2257MUX Real Image
Same model may have multiple batches, images only for reference.

FSA2257MUX

Part No FSA2257MUX
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPDT 10MSOP
Datasheet
FSA2257MUX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 1.5 Ohm (Typ)
Channel-to-Channel Matching (ΔRon) 700 mOhm
Single Supply Voltage (V+) 1.65 V to 5.5 V
Max Switch Time (Ton,Toff) 35ns, 15ns
-3db Bandwidth 200MHz
Charge Injection 10pC
Channel Capacitance(CS off, CD off) 12pF
Max Leakage Current (IS off) 2nA
Crosstalk -75dB @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-MSOP
Win Source Part Number 1040097-FSA2257MUX
Popularity Medium
Supply and Demand Status Limited
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian FSA2257MUX CAD Model

Description

The FSA2257MUX is a 2-circuit SPDT switch integrated circuit manufactured by Fairchild/ON Semiconductor.

  • -3db Bandwidth: 200MHz
  • Charge Injection: 10pC
  • Crosstalk: -75dB @ 1MHz
  • Channel-to-Channel Matching (ΔRon): 700 mOhm
  • Max On Resistance: 1.5 Ohm (Typ)
  • Single Supply Voltage (V+): 1.65 V to 5.5 V
  • Dual Supply Voltage(V±): -
  • Max Switch Time (Ton,Toff): 35ns, 15ns
  • Channel Capacitance(CS off, CD off): 12pF
  • Maximum Leakage Current (IS off): 2nA
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: 10-MSOP
  • Quantity per Package: 4k pcs
