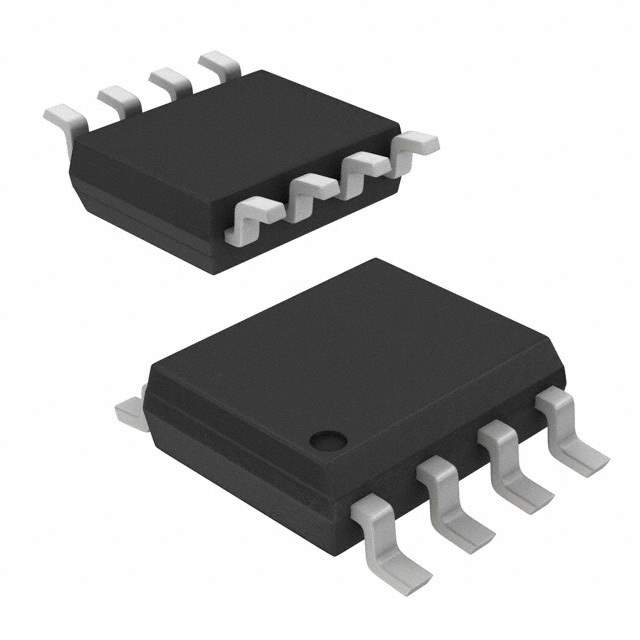

FPF2700MX Real Image FPF2700MX real image17998 FPF2700MX real image17999 FPF2700MX real image18000 FPF2700MX Real Image1 FPF2700MX Real Image2 FPF2700MX Real Image3 FPF2700MX Real Image4 FPF2700MX Real Image5 FPF2700MX Real Image6
FPF2700MX Real Image FPF2700MX real image17998 FPF2700MX real image17999 FPF2700MX real image18000 FPF2700MX Real Image1 FPF2700MX Real Image2 FPF2700MX Real Image3 FPF2700MX Real Image4 FPF2700MX Real Image5 FPF2700MX Real Image6
Same model may have multiple batches, images only for reference.

FPF2700MX

Part No FPF2700MX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Power Distribution Switches, Load Drivers
Description Adjustable Over-Current Protection Load Switches
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series AccuPower
Packaging Reel - TR
Switch Type General
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 2.8 V ~ 36 V
Current - Output (Maximum) 2A
Rds On (Typ) 88 mOhm
Features Auto Restart, Power Good, Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature Range -40°C ~ 85°C (TA)
Package 8-SOIC (0.154", 3.90mm Width)
Manufacturer Package 8-SO
Win Source Part Number 1175143-FPF2700MX
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian FPF2700MX CAD Model

Description

The FPF2700MX is an AccuPower series N-Channel high side power switch manufactured by Fairchild/ON Semiconductor.

  • Package: 8-SOIC
  • Width: 0.154 inches
  • Current Output: 2A
  • Voltage Load: 2.8V to 36V
  • Rds On (Typ): 88 mOhm
  • Features: Auto Restart, Power Good, Slew Rate Controlled, and Status Flag
  • Fault Protection: Current Limiting (Adjustable), Over-Temperature, and UVLO
  • Switch Type: General
  • Interface: On/Off
  • Popularity: Medium
  • Supply: Limited
  • Alternative Part: FPF2700MPX
